2 Panel Horizontal Slider, Unglazed for 4mm Glazing

Estimated Delivery Time : 3 weeks

  • 2 Panel Horizontal Slider, Unglazed for 4mm Glazing
  • Buy 2 Panel Horizontal Slider, Unglazed for 4mm Glazing online today
  • 2 Panel Horizontal Slider, Unglazed for 4mm Glazing from Omega Build
  • Great deals on 2 Panel Horizontal Slider, Unglazed for 4mm Glazing
  • Affordable 2 Panel Horizontal Slider, Unglazed for 4mm Glazing
  • Great selection of 2 Panel Horizontal Slider, Unglazed for 4mm Glazing
£ 0.00 Ex. VAT
£ 0.00 Inc. VAT

Reveal Height
(Max: 1800 mm)
(Min: 300 mm)



Reveal Width
(Max: 2000 mm)
(Min: 600 mm)



Quantity

Download PDF



2 Panel Horizontal Slider, Unglazed for 4mm Glazing from Omega Build



Product details:


SmartSlider - 2 Panel Horizontal Slider (2PHS), Unglazed for 4mm Glazing

This product is made-to-measure based on the dimensions supplied.

2 Panel Horizontal Slider (2PHS)

(Suitable for) Window Reveal dimensions:

Width:  600mm (minimum),    2,000mm (maximum).

Height: 300mm (minimum),    1,800mm (maximum).

Operation:

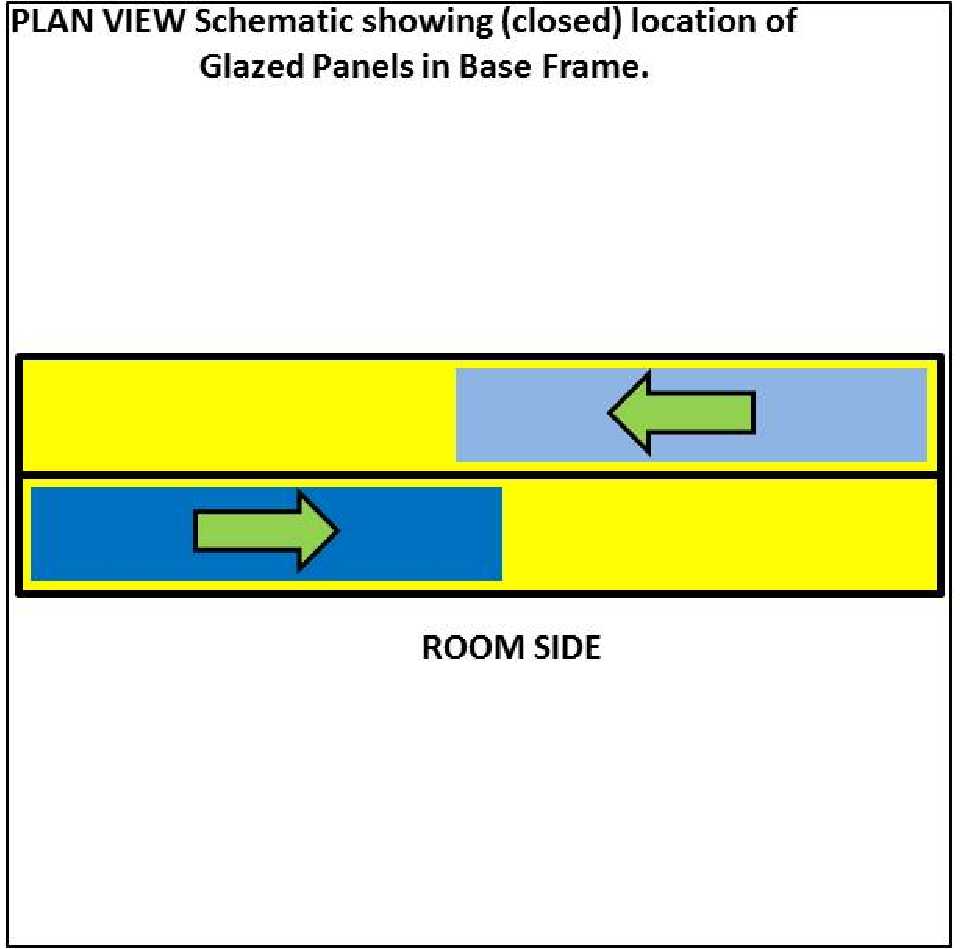

The sliding panels slide in the base frame. The base frame has (2) channels.

The Left-Hand panel slides in the channel furthest from the existing window (when viewed from inside the room).

The Right-Hand panel slides in the channel nearest the existing window (when viewed from inside the room).

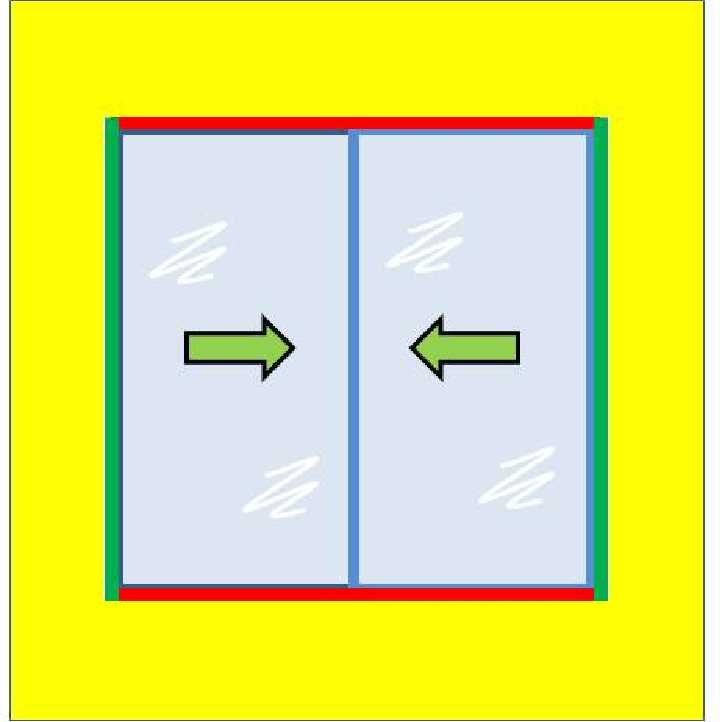

The two panels hook together when closed to provide a draught-proof seal.

Glazing:

This product is supplied with components cut-to-size, ready to assemble with 4mm glazing supplied by the customer.

Installation:

SmartSlider can be fitted directly to the face of the existing frame (Face Fixed), or

Smartslider can be fitted to the window reveal (Reveal Fixed).
