Free-Standing Canopy in Anthracite Grey, Gable-Roof Type 2, 16mm Polycarbonate Glazing



This is a range of Free-Standing Canopies with Anthracite Grey frames.

The canopy is NOT attached to a building (This is the derivation of the term Free-Standing).

The Gable roof pitches downwards from both sides of the ridge to the Eaves/Gutters.

The standard glazing material is 16mm Clear, Bronze or Opal structured polycarbonate.

There are (2) standard projections:

6.2m (6,229mm).

7.0m (7,229mm).

The roof-pitch is 17.5 degrees.

Both Standard projection canopies employ (3) rows of (3) posts.

There are (3) posts under each Eaves and (3) posts located under the ridge.

The maximum span between the posts located at the Eaves is 4.0m.

This makes this canopy particularly useful for use as a carport with access via the Eaves (rather than via the Gable Ends).

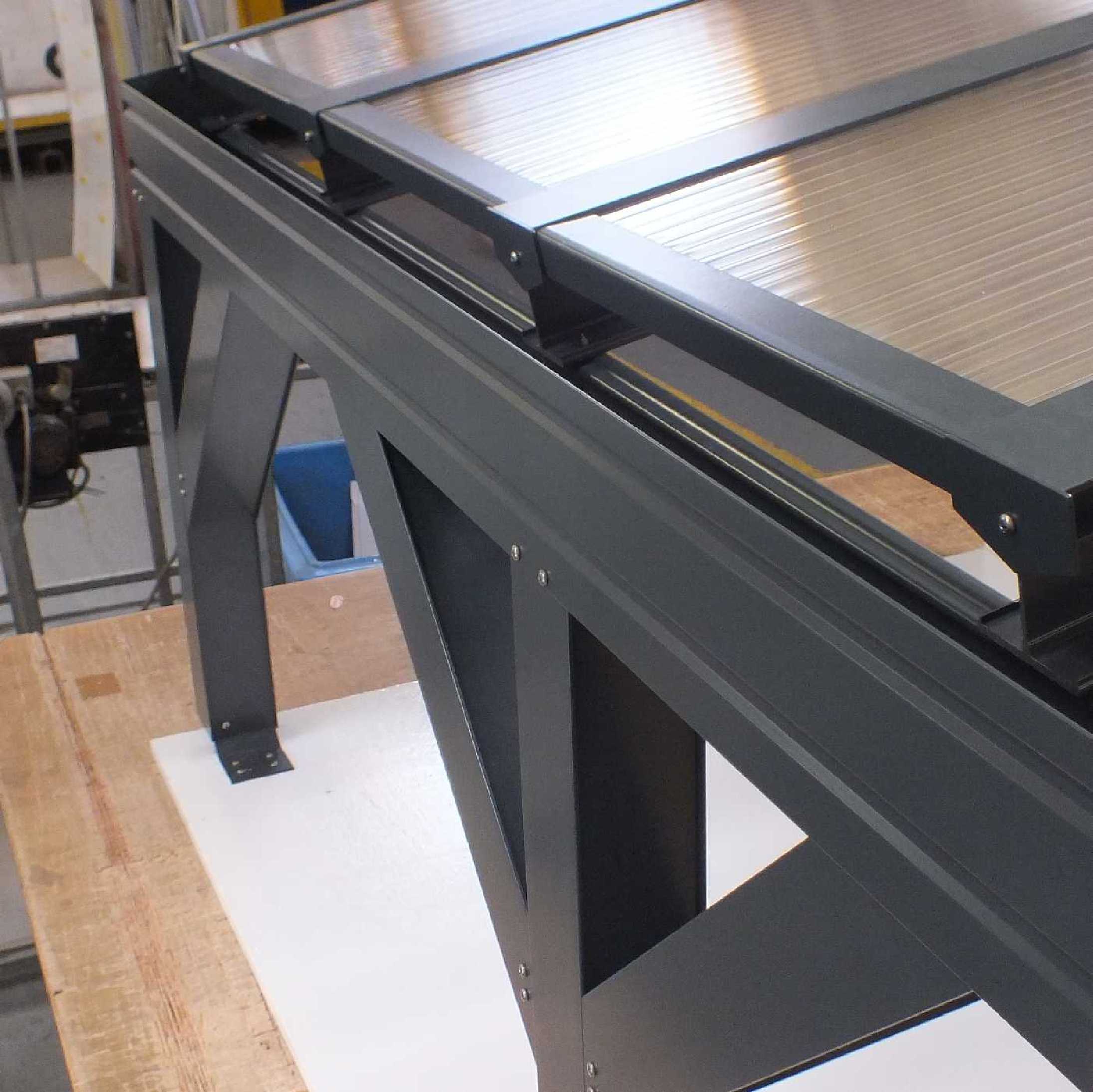

The structural aluminium frame profiles are powder coated in Matt Anthracite Grey (RAL7016).

If required your specific requirements of roof pitch, height at Eaves, height at Ridge, frame colour can be supplied. In this instance please contact Omega with your particular requirements. We can provide you with a quotation based on your requirements.


6.2m Projection
6.2m Projection
7.0m Projection
7.0m Projection
