Full Side InFill, 6mm Plate Polycarbonate Glazing Panels

Full Side InFill, 6mm Plate Polycarbonate Glazing Panels - Image 2

Full Side InFill, 6mm Plate Polycarbonate Glazing Panels

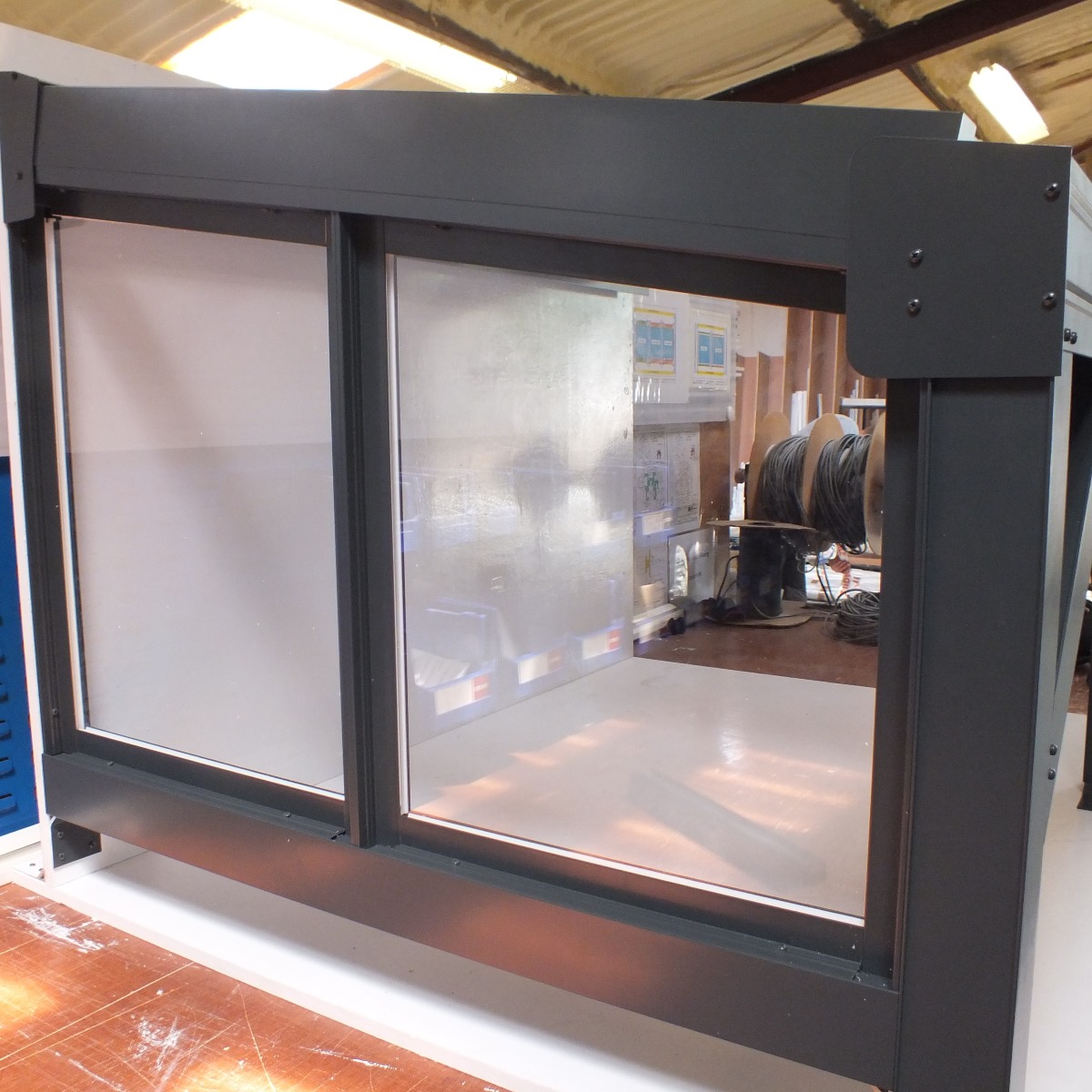

Glazed Full-Side framed panel.

6mm Clear-as Glass solid Plate or Opal Polycarbonate.

Frame components powder-coated in White or Anthracite Grey.

Product Code / SKU: N/A

Buy Direct from the Manufacturer
10 Year Warranty
Made in the UK

Price range: £539.00 through £1,857.46 Inc VAT.

Canopy Side Requiring In Fil

Frame Colour

Canopy Projection

Est. Delivery: 10-15 working days

Clear options

Payment Methods:

Pay in 3 interest-free payments

Omega Smart Canopy - FULL Side Glazed In-Fill Section for Sides of Canopy (installed under the sloping Edge Glazing Bar), 6mm Clear-as-Glass Solid Plate Polycarbonate Glazing Panels.

Can be installed on the right hand or left hand side of the canopy, or both.

For a successful installation:
The end Supporting Post must be located at the extreme end of the Eaves/Gutter.
The Wallplate must be mounted directly onto the property wall.
The Roof Pitch MUST be between 5 and 20 degrees.

Framework:

Structural frame components formed from extruded aluminium (Structural grade aluminium alloy).
Powder-coated in White, Anthracite Grey.

Glazing Panels:

6mm Clear-as-Glass Solid Plate Polycarbonate.

Dimensions:

Full Side InFills are made to fit the existing Smart Canopy. Dimensions from the existing canopy are required to manufacture the Full Side InFill. A guide to providing these dimensions is provided.

Projection The 6mm Plate Polycarbonate Full Side InFill can be supplied for canopies upto 4.5m Projection.

Roof Pitch: Full Side InFills can be fitted to Smart Canopies with a Roof Pitch between 5 and 20 degrees.

Number of glazed panels/per Projection.

Projection	Number of Panels
upto 2.0m	2
2.001m – 3.0m	3
3.001m – 4.0m	4
4.001m – 4.5m	5

Clearance between bottom of Base Frame to Finished Ground is normally 152mm (for Smart Canopy with 2,5m Posts located in recommended foundation).

Design Features:

Full Side InFills are made-to-measure the (already) installed canopy. This means that there should be no adjustments required to the supplied components ‘on-site’.

The Full Side InFill is NOT intended to fully enclose the side of the canopy.
There is a sound structural reason for this. The space between the bottom of the Base Frame and ground level is to allow an escape for air pressure. This reduces wind loading on the Side Panel.

Full Side InFills for Canopies with Projections over 3.0m are supplied with an additional support located mid-way from the wall to the Supporting Post at the Eaves.
