Smart CanopyVISTA16withGableRoof - Image 2

Smart CanopyVISTA16withGableRoof - Image 3

Smart CanopyVISTA16withGableRoof - Image 4

Smart CanopyVISTA16withGableRoof - Image 5

Smart CanopyVISTA16withGableRoof - Image 6

Closeup of Smart Canopy eaves beam/gutter in anthracite grey with bronze polycarbonate

3 samples of 16mm polycarbonate in clear, bronze and opal

On Sale

Smart CanopyVISTA16withGableRoof

Free-Standing (stand alone) Canopy with Gable Roof.
Glazed with 16mm Clear, Bronze or Opal Polycarbonate.
Framework in White/Anthracite Grey powder-coated aluminium alloy.

ALL Smart VISTA canopies DISCOUNTED by 10%

Product Code / SKU: SCVISTA16GAB

Buy Direct from the Manufacturer
10 Year Warranty
Made in the UK

Need a Custom Quote? Click here.

~~£1,705.69~~ Price range: £1,535.12 through £4,583.92 Inc VAT.

Canopy Projection

Canopy Width

Frame Colour *
Glazing Colour *

Est. Delivery: 10-15 working days

Clear options

Payment Methods:

Pay in 3 interest-free payments

A great solution for your carport.

This is a 'Free-Standing Canopy' (NOT attached to a building).

Aluminium alloy frame Powder-coated in White or Anthracite Grey.

Glazed with 16mm Clear, Bronze or Opal polycarbonate.

Framework:

Structural frame components formed from extruded aluminium (Structural grade aluminium alloy).

Integral eaves beam/gutter, with one or more posts acting as downpipes.
Gutter adapters are available if need to divert to a traditional downpipe.

Frame components powder-coated in White, Anthracite Grey.

All Eaves height Joints are strengthened with Knee-Braces structurally secured.
Supporting Posts at Eaves are ‘Tied’ to Supporting Posts at Ridge by Tiebars, again, structurally secured.

Glazing Panels:

16mm Clear, Bronze or Opal Polycarbonate.

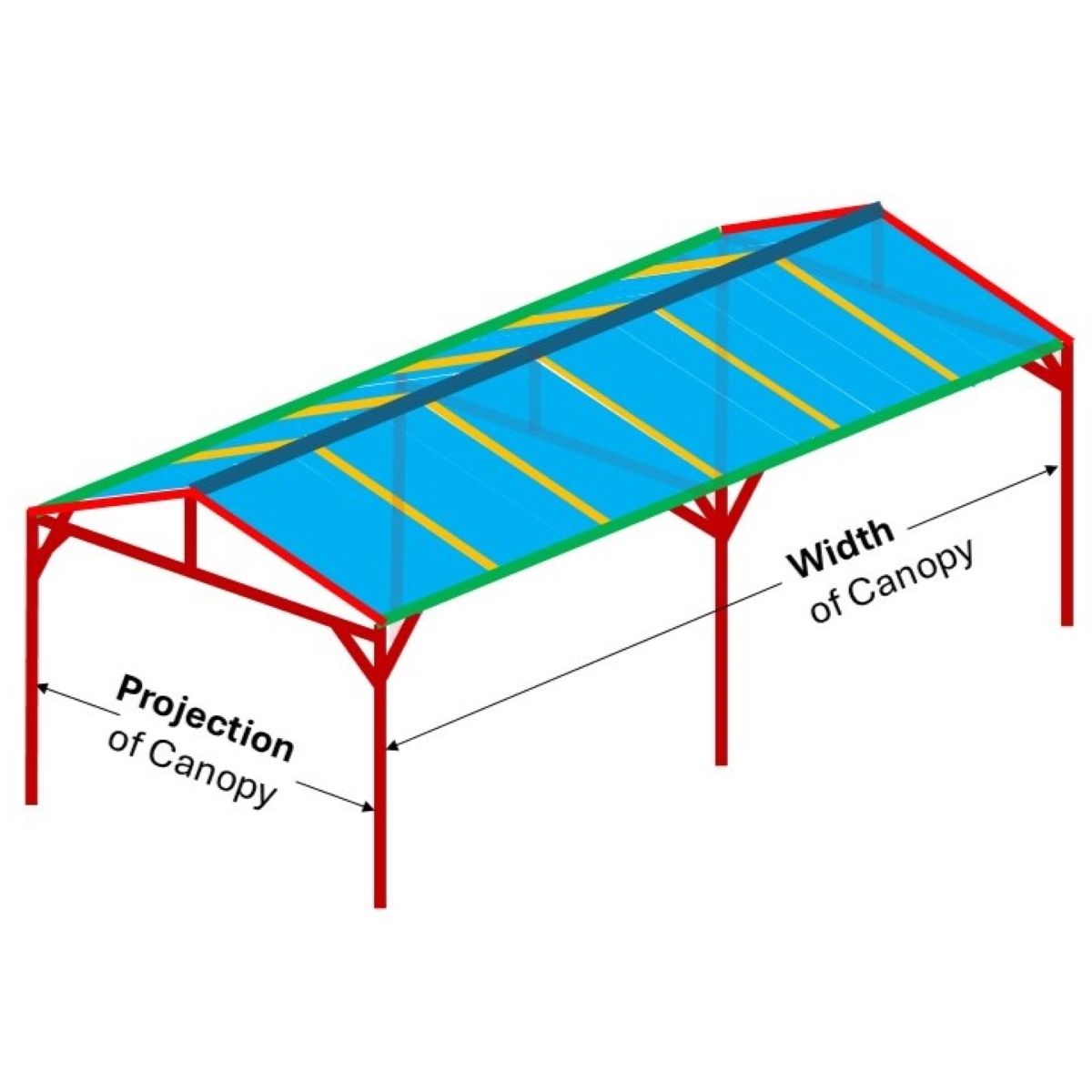

Dimensions:

Width (dimension along the Ridge)
Standard width starts at: 3.0m
Maximum standard width: 8.4m

Projection (dimension from back of Ridge to front of Eaves).
Standard Projections:
3.0m (actual projection: 3,154mm)
3.5m (actual projection: 3,654mm)
4.0m (actual projection: 4,154mm)

Roof Pitch: The Roof Pitch for standard projections is fixed at 20degrees.

Supporting Posts:

Eaves Posts supplied at 2.85m as standard.

This provides a ‘Finished Ground to Eaves’ Clearance of 2.1m.
The maximum Finished Ground to Eaves clearance that can be achieved is 2.45m (longer Ridge and Eaves Posts are supplied).

Quantity of Posts supplied for Standard width canopies:

Standard Width	Qty.Supporting Posts at Eaves
3.0m	2 rows of 2 posts/row
4.0m, 4.2m, 5.2m, 6.0m	2 rows of 3 posts/row
6.4m, 7.4m, 8.4m	2 rows of 4 posts/row

Supporting Posts must be installed no more than 3.0m apart.

Please note that for canopies that are more than 6m wide the Eaves/Gutter will be supplied in (2) lengths. These (2) lengths will be joined together.
A Supporting Post MUST be located directly under this joint.
