Short Span Self-Supporting Glazing Bar

The Short Span Bar can be used with multiwall polycarbonate (4mm, 6mm, 10mm, 16mm, 25mm thick). It is ideal where you need to span cross purlins rather than being fully supported by a rafter.

Product Code / SKU: OR15X-99X-XCX
  • Made in UK
  • 10-Year Warranty

Price range: £67.01 through £95.11 Inc VAT.

Payment Methods: Mastercard, Visa, American Express, PayPal logos
PayPal logo Pay in 3 interest-free payments

The Short Span Bar can be used with multiwall polycarbonate (4mm, 6mm, 10mm, 16mm, 25mm thick).

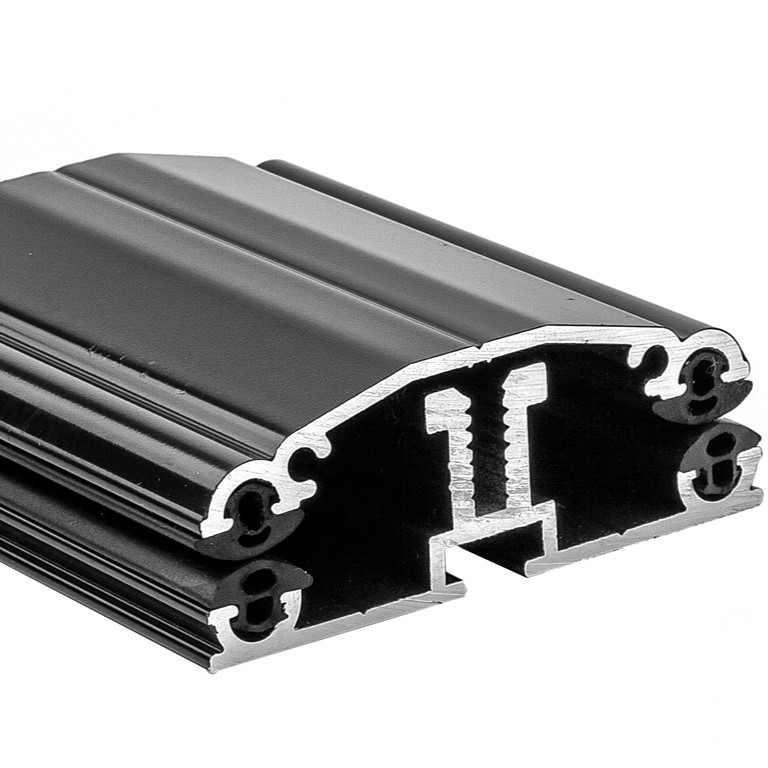

It is supplied in a choice of white, brown or anthracite grey.

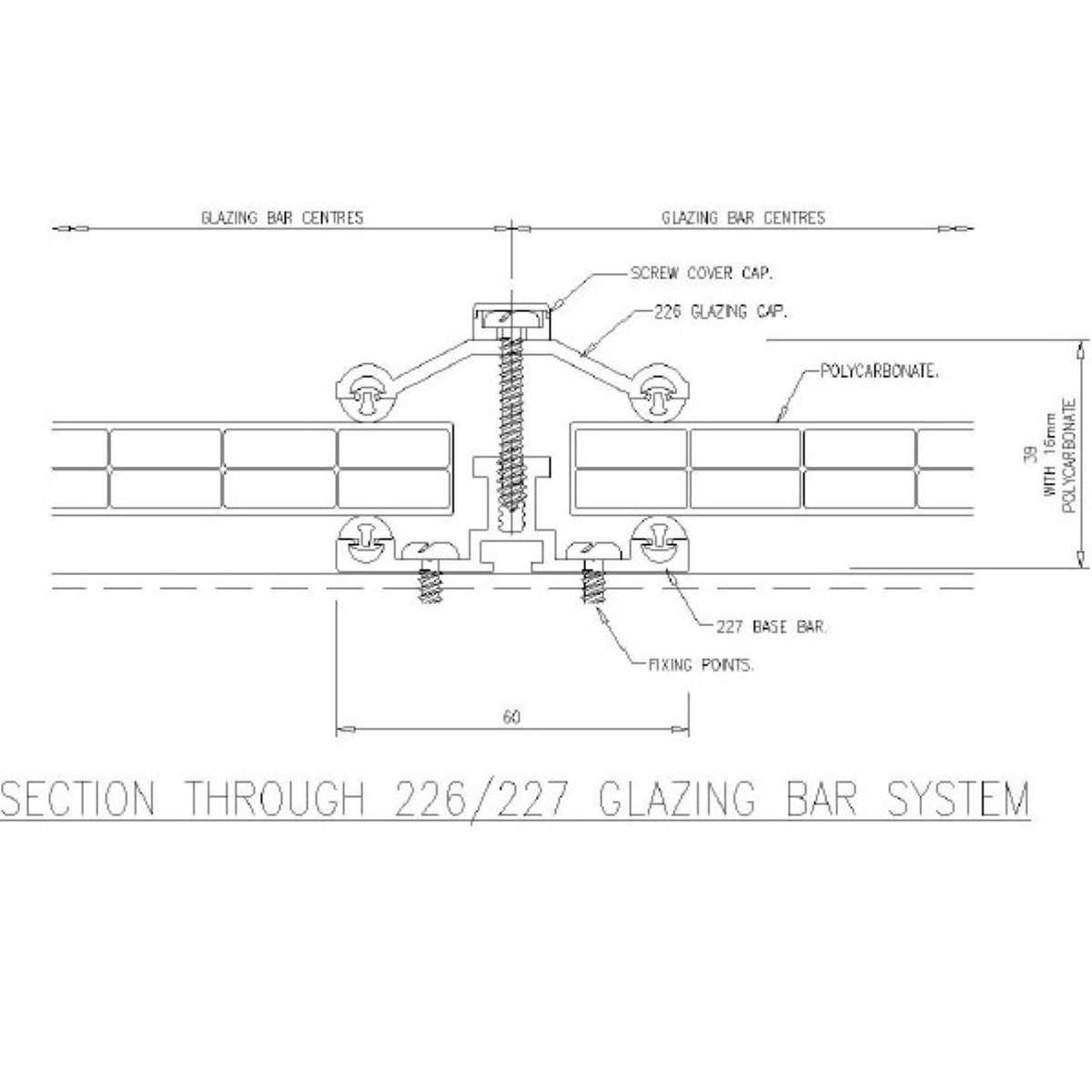

Each bar comes with the aluminium base 60mm wide, top cap (with the gaskets) and one end cap.
The screws and screw-covers needed to fit the bar can be purchased separately.
This glazing bar is ideal for a roof where you have only a few rafters, but, primarily cross-purlins (e.g. when replacing old timber greenhouse roofs, replacing corrugated plastic roofs).

The glazing bar will self-support up to 1,400mm at the following centres
10mm Polycarbonate:          700mm.
16mm Polycarbonate:         1,000mm.
25mm Polycarbonate:         1,230mm

At the roof edges use a matching ‘F’ section.
The top cap should be screwed down at 300mm intervals.

Product Feature: Ideal when replacing a corrugated roof with multiwall polycarbonate as it does not need to be fully supported under its length
