This price is for a sample size unit only (2500mm wide x 1000mm high) and does not include delivery costs. As they are made to order to your specific size and specification please use the quote request form to get prices.

A slim and versatile horizontal sliding system that provides easy access for cleaning and ventilation, and is suitable for treating most window types. Available with 2, 3, 4 or 5 sliding panels

They come as standard with:

4mm toughened glass preglazed

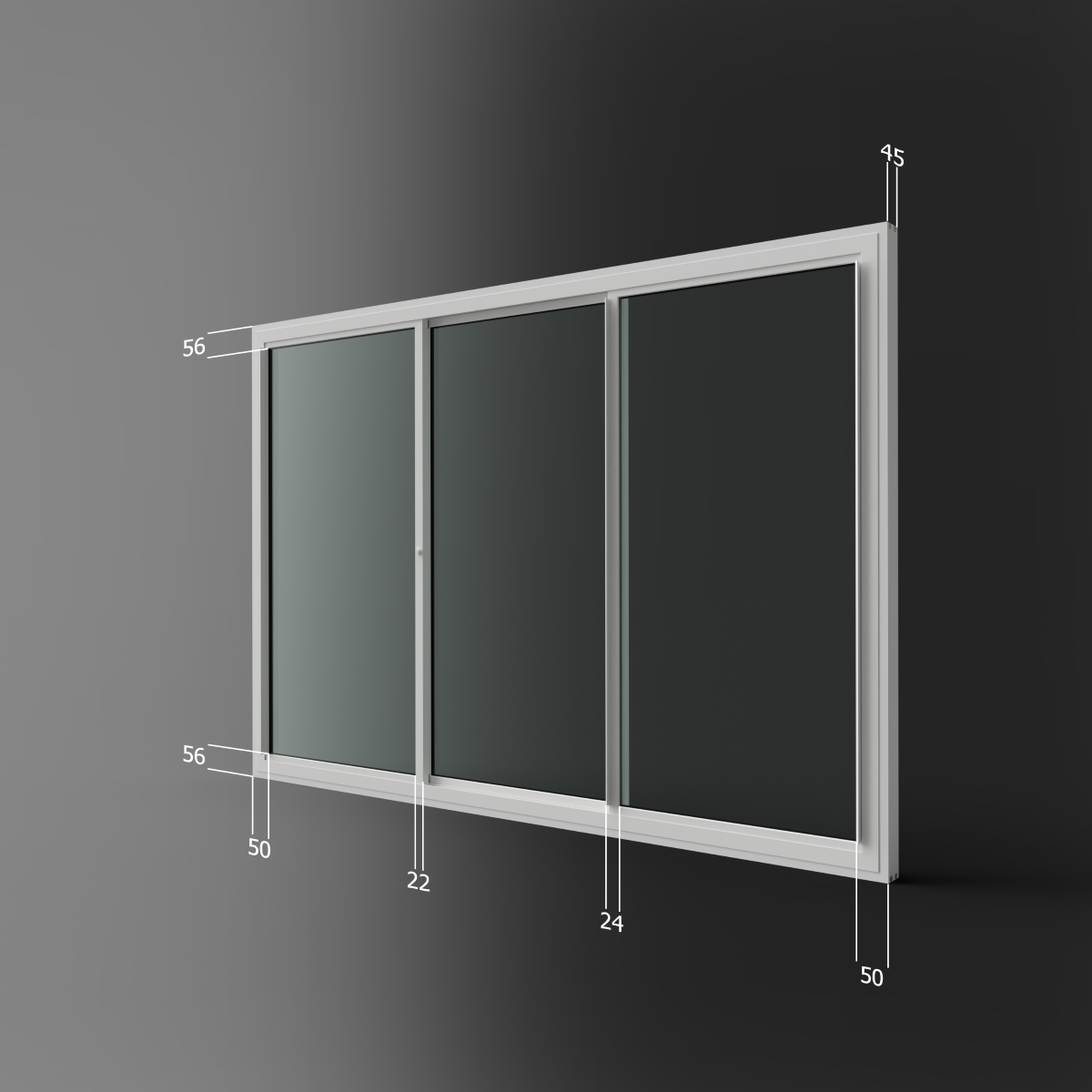

43mm frame depth predrilled for face fix
Panels split evenly unless requested otherwise
White gaskets
20mm white PVC trims supplied
HS2 MAX WIDTH 3,200mm MAX HEIGHT 2,700mm
Optimum Noise Reduction: 52dB (Rw) Using 6mm toughened primary glazing and 6.8mm acoustic laminate secondary glazing.
Optimum U Value: 1.868 W/m2K Using 4mm toughened Low E glazing, with 10-20mm glass-to-glass
Other glass types and fixings available

How to operate a horizontal slider secondary glazing unit
To open the panels the push button must be released, this will then allow the panels to slide freely in the tracks.
Take care not to slam the panels or push them too fast. To open and close the panels a smooth and even movement
is recommended.
It is advised to use two hands to move the panels. This will ensure the panels slide smoothly and do not foul in the
track.
To close and secure the panels slide the panels to the closed position.
To remove the panels from the outer frame lift the panel up into the head and lift forward to clear the bottom of the
outerframe. Reverse the procedure to replace the panel into the outerframe.
Please note: for frames of 20kg or higher, standard manual handling practices should apply. Glass suckers should
be used if available or, failing that, a second person should be consulted to help lift the frame.
