This price is for a sample size unit only (750mm wide x 1000mm high) and does not include delivery costs. As they are made to order to your specific size and specification please use the quote request form to get prices.

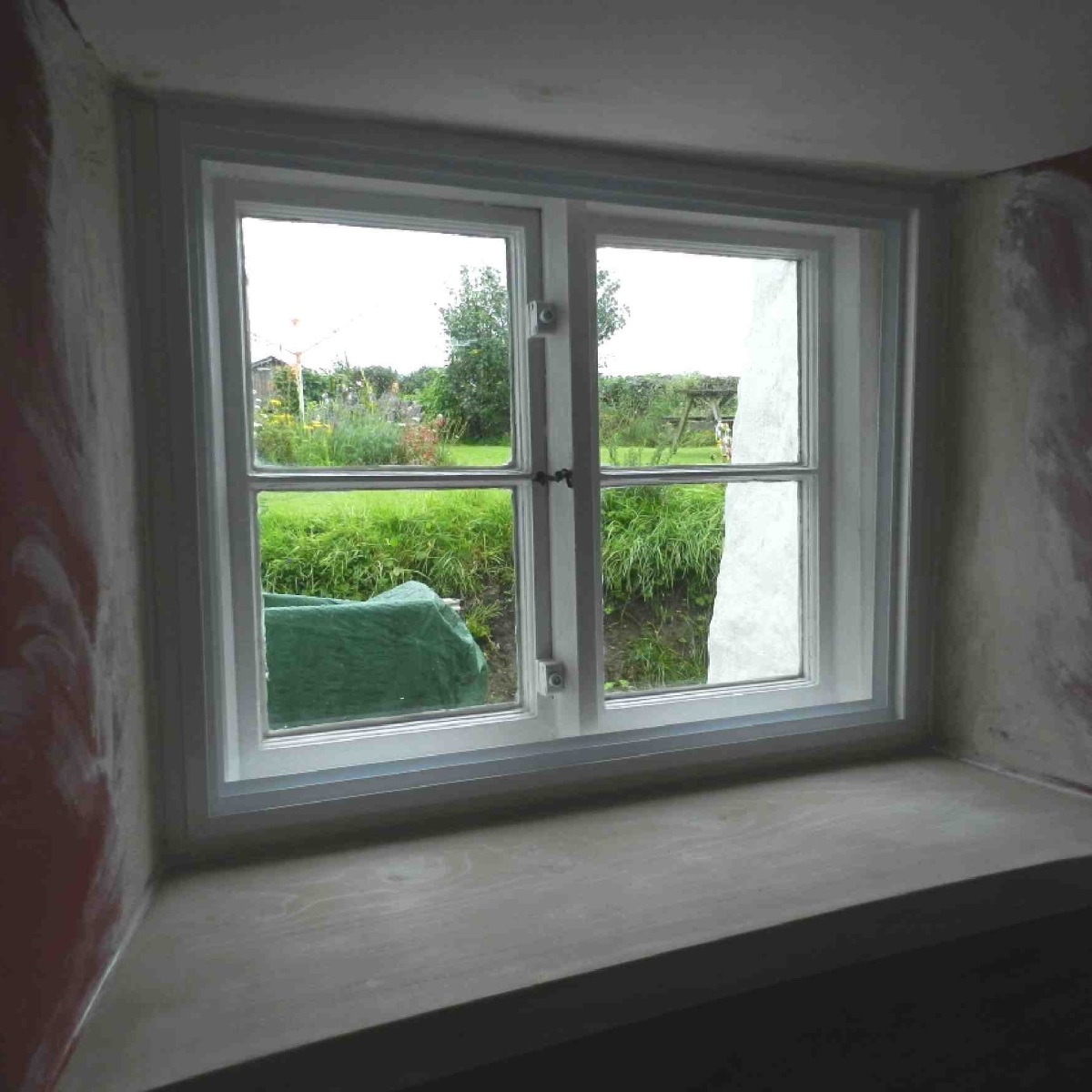

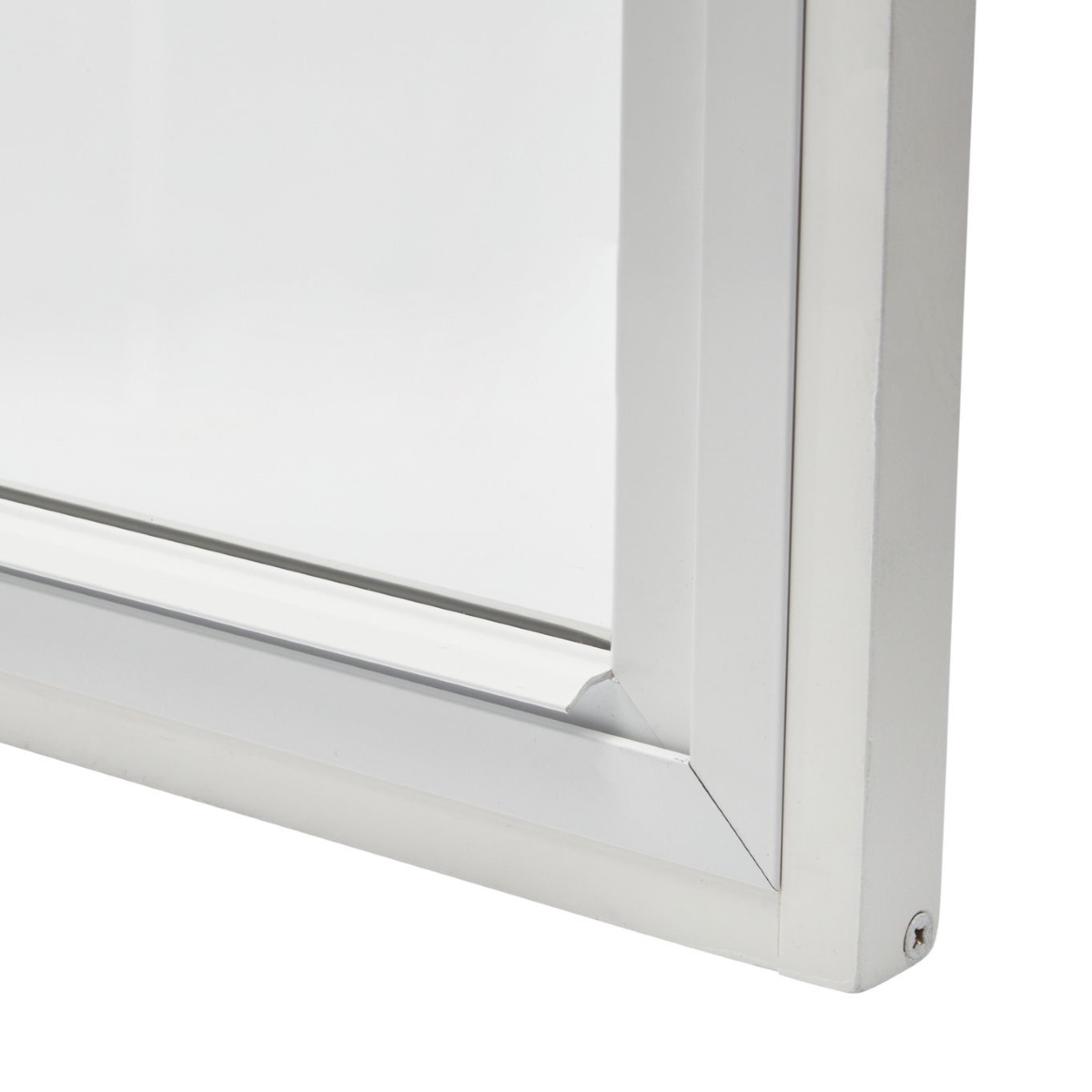

A removable secondary glazing panel within its own outer frame, which fixes to the face or reveal of the existing primary window. An ideal solution when only occasional cleaning access is required

They come as standard with;

4mm toughened glass preglazed
25mm frame depth predrilled for face fix
Panels split evenly unless requested otherwise
White gaskets
20mm white PVC trims supplied
Other glass types and fixings available
MAX WIDTH 2,000mm MAX HEIGHT 2,000mm
Optimum Noise Reduction: 49dB (Rw) Using 6mm toughened primary glazing and 6.8mm acoustic laminate secondary glazing.
Optimum U Value: 1.868 W/m2K Using 4mm toughened Low E glazing, with 80mm glass-to-glass

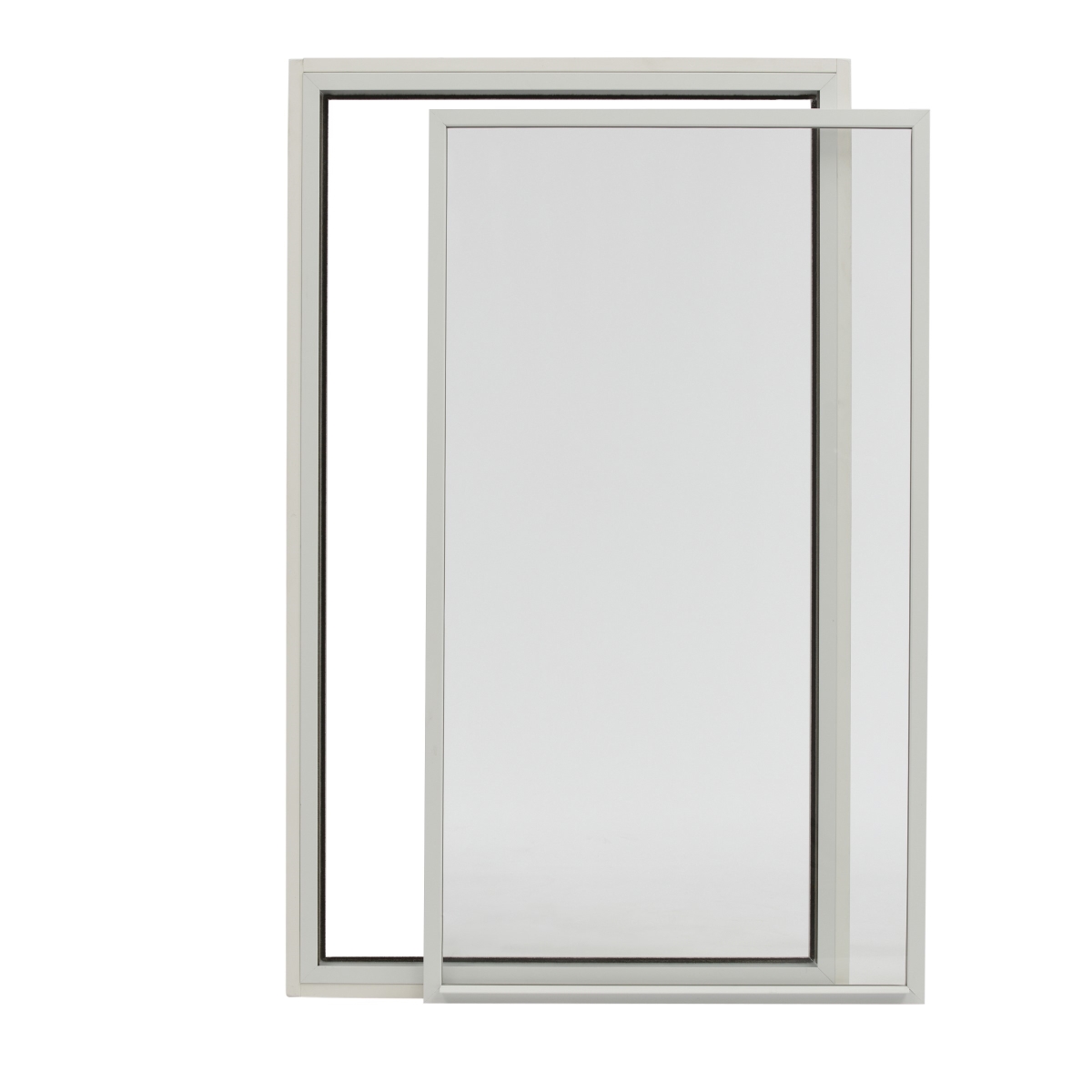

How to remove Lift-Out secondary glazing

To remove the panel from the outer frame lift up into the head and lift panel forward to clear the bottom of the outerframe.
Reverse the procedure to replace the panel in the outerframe. To prevent the panel falling, please ensure the panel is secure in the outerframe.
Please note: for frames of 20kg or higher, standard manual handling practices should apply. Glass suckers should be used if available or, failing that, a second person should be consulted to help lift the frame.

At Omegabuild, we want your order to arrive quickly and smoothly. We know that buying large items such as building and roofing materials online can sometimes feel off putting, so we’ve made our delivery process as straightforward as possible. Here are the key things you need to know:

Delivery Charges
Delivery costs are shown in your shopping trolley before you complete your order. Prices shown apply to UK mainland only. Extra charges may apply for Isle of Wight and the Scottish Highlands.
Offshore Deliveries
We do not deliver offshore as standard. However, we can deliver to a shipper in the UK of your choice. Just contact our team to check.
Collections
If you would prefer to collect from our factory in North Devon that can be arranged. Just contact the office and we can agree a collection date.
Delivery Days
We usually deliver Monday to Friday (excluding Bank Holidays).
Estimated Delivery Dates
You’ll find an estimated delivery period on most product pages. We do our very best to meet these estimates, but please note they are not guaranteed.
Special Delivery requirements
If you have specific delivery requests, such as safe drop-off locations or business hours - please include these details in the notes section during checkout.
Order Cut-Off Times
Orders placed after 10am, at weekends, or on a Bank Holiday will be processed on the next working day. Please keep this in mind if timing is important.
Order Confirmation
Once your order is placed, you’ll receive an email confirmation with the details. Please check this carefully and let us know straight away if there are any errors.
Delivery Updates
After your confirmation, you’ll receive another email letting you know your planned delivery or dispatch date.
2 Man Delivery Service
We use a 2-man delivery service for many of our larger item deliveries. We will let you know the dispatch day of your order and then the 2-man delivery service will then contact you directly with a delivery day with time slot.
No One Home?
In many cases, we can arrange for your items to be left in a safe place if you won’t be in. Just let us know when placing your order.
Stock & Multiple Deliveries
While we keep most items in stock, some products may be special orders or even come directly from the manufacturer. This may involve a different delivery charge or your order arriving in separate deliveries.
Before You Order
We recommend reading our full Delivery Information, Terms & Conditions, and Returns Policy before completing your order. By ordering, you confirm you’ve accepted these.

If you have any questions about delivery or our products, our friendly team is here to help. Contact us online or by phone - we’ll be happy to assist.
