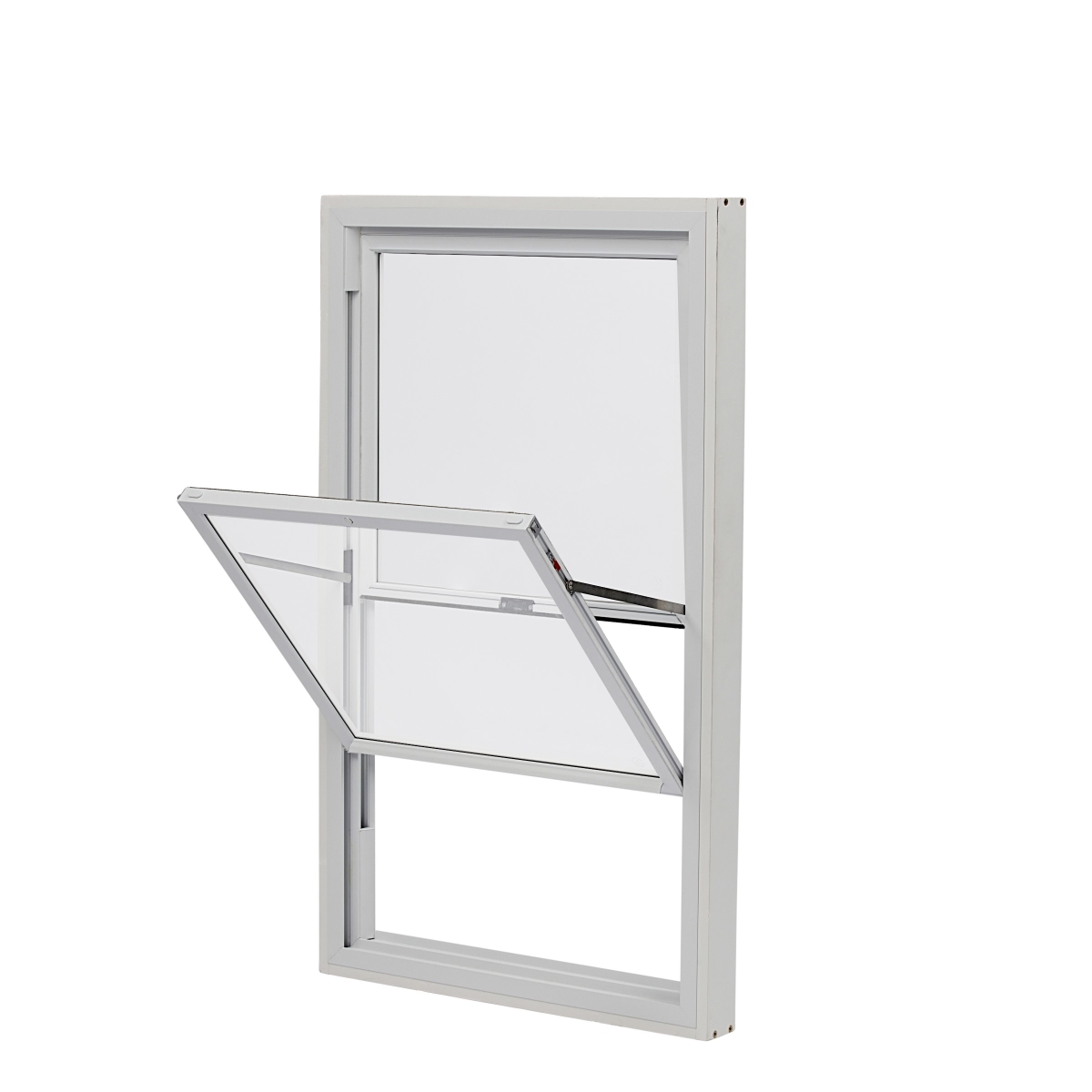

TILT Balanced Vertical ↕ Slider secondary glazing unit.
This price is for a sample size unit only (1000mm wide x 1500mm high) and does not include delivery costs.
As they are made to order to your specific size and specification please use the quote request form to get prices.

Tilting balanced vertical sliding secondary glazing units designed specifically to accompany sash windows. Discreet units with self-supporting panes. Tilt-in facility enables each secondary sash to be independently released from the outer frame and pivoted inwards through almost 180°

They come as standard with:

4mm Toughened glass pre-glazed
50mm Frame depth predrilled for face fix
Panels split evenly unless requested otherwise
White gaskets
20mm White PVC trims supplied
TBVS MAX WIDTH 1,500mm MAX HEIGHT 3000mm
Optimum Noise Reduction: 50dB (Rw) Using 6mm toughened primary glazing and 6.8mm acoustic laminate secondary glazing.
Optimum U Value: 1.868 W/m2K Using 4mm toughened Low E glazing, with 80mm glass-to-glass

Discreet units with self-supporting panes. The tilt-in facility enables each secondary sash (panel) to be
independently released from the outer frame and pivoted inwards through almost 180°. To operate the
panel, ensure the handle section is gripped at either side. Panels should not be operated by grabbing the
middle of the handle section.

How to operate a tilting vertical slider secondary glazing unit

Hold the bottom handle section of the unit and push in the button which is located to the centre of the meeting
styles. This allows the bottom panel to slide up and the top button to slide down. In order to locate the push button
again, the top panel must be pushed right to the top and the bottom panel right to the bottom.
To operate the tilt in facility, press the push button in the centre of the meeting styles and slide the panel up
slightly. Using the small sliding catch located to the left and right hand side of the bottom panel, pull the release
catches towards the centre and tilt panel towards you.
To tilt the top panel, the bottom panel has to be in the tilt in position. Slide the top panel down as far as required
and then repeat the operation of pulling the small catch towards the centre then tilt panel towards you.
To return the top panel into a closed position, tilt the panel back towards the window and ensure the catches are
locked into the track securely and slide as normal into the original position. Repeat this procedure with the bottom
panel.
