How to Measure for Secondary Glazing

It is important that you take accurate measurements in order to get the best possible fit for your new secondary glazing

  • make deductions for the fitting tolerance
  • measure out of square openings
  • line up the secondary units with any horizontal or vertical divisions (break lines)  in the primary window
  • comply with safety glass requirements
  • measure for a bay window, coupled or shaped unit

If you are not sure of anything or have a problem - just call us for help!

For the purposes of getting a quotation you don’t need the break lines, just the design, approximate sizes and the type/s of glass.

Measuring for Secondary Glazing

The measuring is not overly complicated - but you can’t be too careful!

  • there is really no such thing as a square, level window opening - without exception you will find differences in both the height & width measurements at different points around the window reveal
  • therefore please take special note of Example 3 below & always measure at several points around every window - always take the smallest measurement
  • the industry standard for measuring secondary windows is metric with all sizes stated in millimetres & the width is always stated as the first measurement

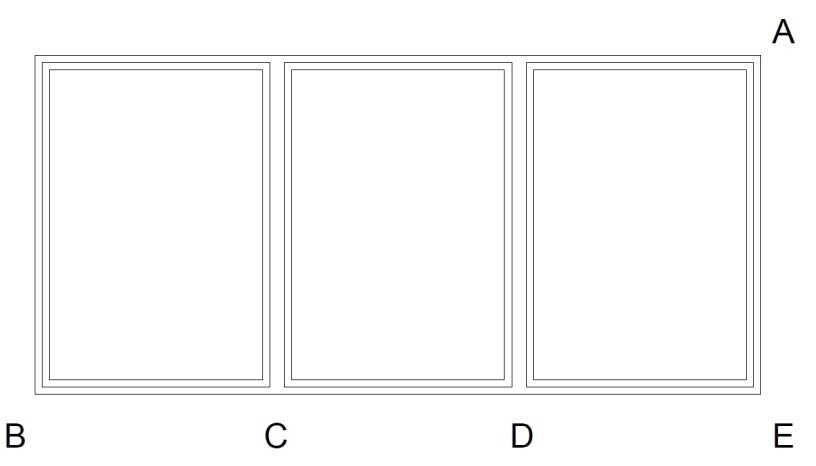

Example 1 – 3 part horizontal slider

  • take the overall size from wall B to wall E and deduct 10mm, i.e. 1780mm becomes 1770mm
  • measure from wall B to centre of C and deduct 5mm, i.e. 785mm becomes 780mm - the break line
  • measure from C to D - centre to centre - to line up all mullions - do not make any deductions!
  • measure from wall A to wall E and deduct 10mm, i.e. 1190mm becomes 1180mm

 This gives an all round fitting tolerance of 5mm.

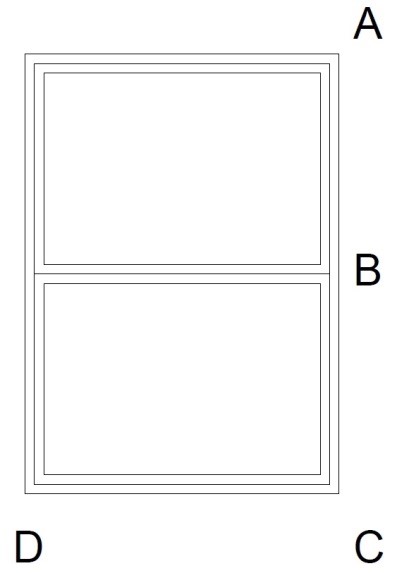

Example 2 – vertical slider

How to measure for secondary glazing

  • measure from wall D to wall C and deduct 10mm, i.e. 890mm becomes 880mm
  • measure from wall A to wall C and deduct 10mm, i.e. 1786mm becomes 1776mm
  • measure from wall A to the centre of B and deduct 5mm, i.e. 893mm becomes 888mm - the break line



This gives an all round fitting tolerance of 5mm.




Please note different types of secondary glazing will need different deductions. 10mm is ideal for the traditional and heritage style units we supply.



Other systems e.g. the Smartslider do not need an additional deduction as they are manufactured 3mm smaller



Example 3 – making allowance for out of square openings

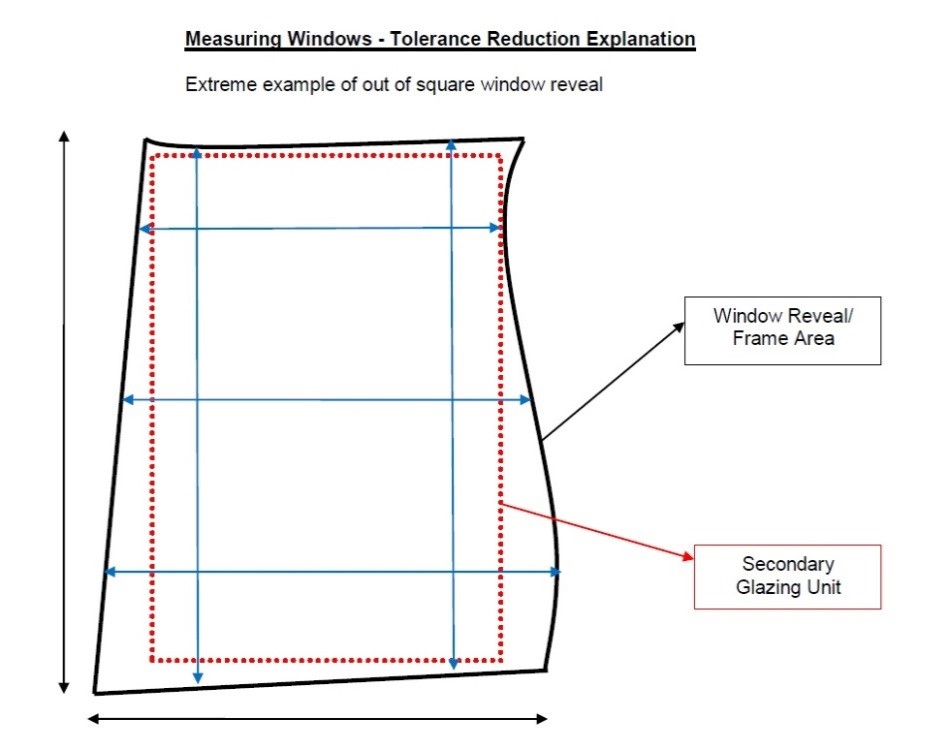

An extreme example of an out of square window reveal!

  • measure at several points all around the window
  • use the smallest width measurement - and deduct 10mm
  • use the smallest height measurement - and deduct 10mm

This gives an all round fitting tolerance of 5mm



Glass Type

The type of glass that you choose will be dependent upon what you want to achieve:



  • heat insulation
  • noise insulation
  • or a combination of the two



4mm and 4mm K glass are ideal for heat insulation

6mm or 6.45mm acoustic glass are usually best for sound insulation

Not sure? Just give us a call and we will advise you.

Safety Glass - Building Regulations Part N1 - Glazing Safety

This regulation applies to all glazing and requires that safety glass be fitted to the secondary glazing in the following situations:



  • all glass within 800mm of floor level
  • all glass within doors up to the height of 1500mm
  • all glass in windows and side panels that adjoin doors - up to the height of 1500mm for all glass within 300mm of the door edge
  • any glass where there is a danger of someone accidentally falling and coming into contact with and breaking the glass, for example, windows next to baths and windows on stairs, landings and half landings

The diagram below gives a quick visual reference:

Glazing Safety



All the traditional and heritage units are supplied as standard with toughened or laminate glass.



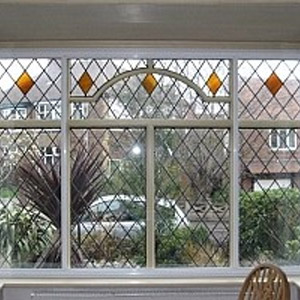

Examples of different styles of Secondary Glazing:



Sash style secondary glazing Secondary glazing by the sea

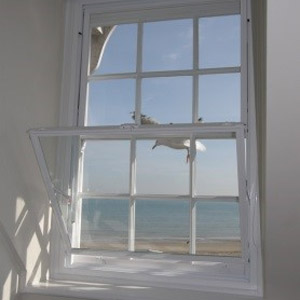

Balanced Vertical Slider (Sash Style) secondary glazing

Tilting Balanced Vertical Slider (Sash Style) secondary glazing

Measure for secondary glazing Fitting Secondary Glazing

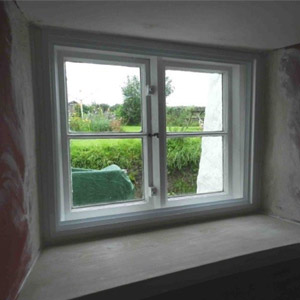

Horizontal Slider secondary Glazing

Lift Out  Secondary Glazing



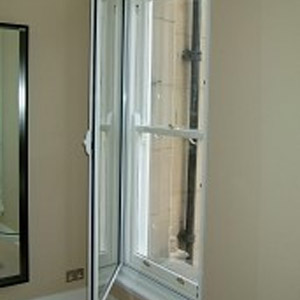

Hinged Secondary Glazing
