5 panel horizontal slider secondary glazing unit

This price is for a sample size unit only  (3500mm wide x 1000mm high) and does not include delivery costs. As they are made to order to your specific size and specification please use the quote request form to get prices.

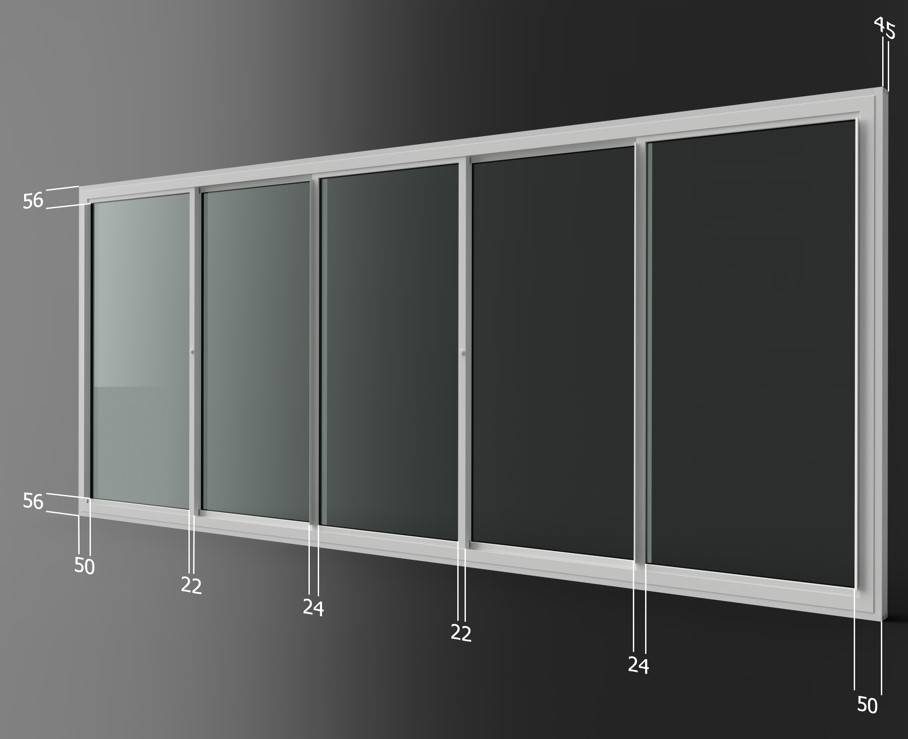

A slim and versatile horizontal sliding system that provides easy access for cleaning and ventilation, and is suitable for treating most window types. Available with 2, 3, 4 or 5 sliding panels

They come as standard with;

4mm toughened glass preglazed

43mm frame depth predrilled for face fix

Panels split evenly unless requested otherwise

White gaskets

20mm white PVC trims supplied

HS4 MAX WIDTH 4900mm MAX HEIGHT 2,700mm

Optimum Noise Reduction: 52dB (Rw) Using 6mm toughened primary glazing and 6.8mm acoustic laminate secondary glazing.

Optimum U Value: 1.868 W/m2K Using 4mm toughened Low E glazing, with 10-20mm glass-to-glass

Other glass  types and fixings available
