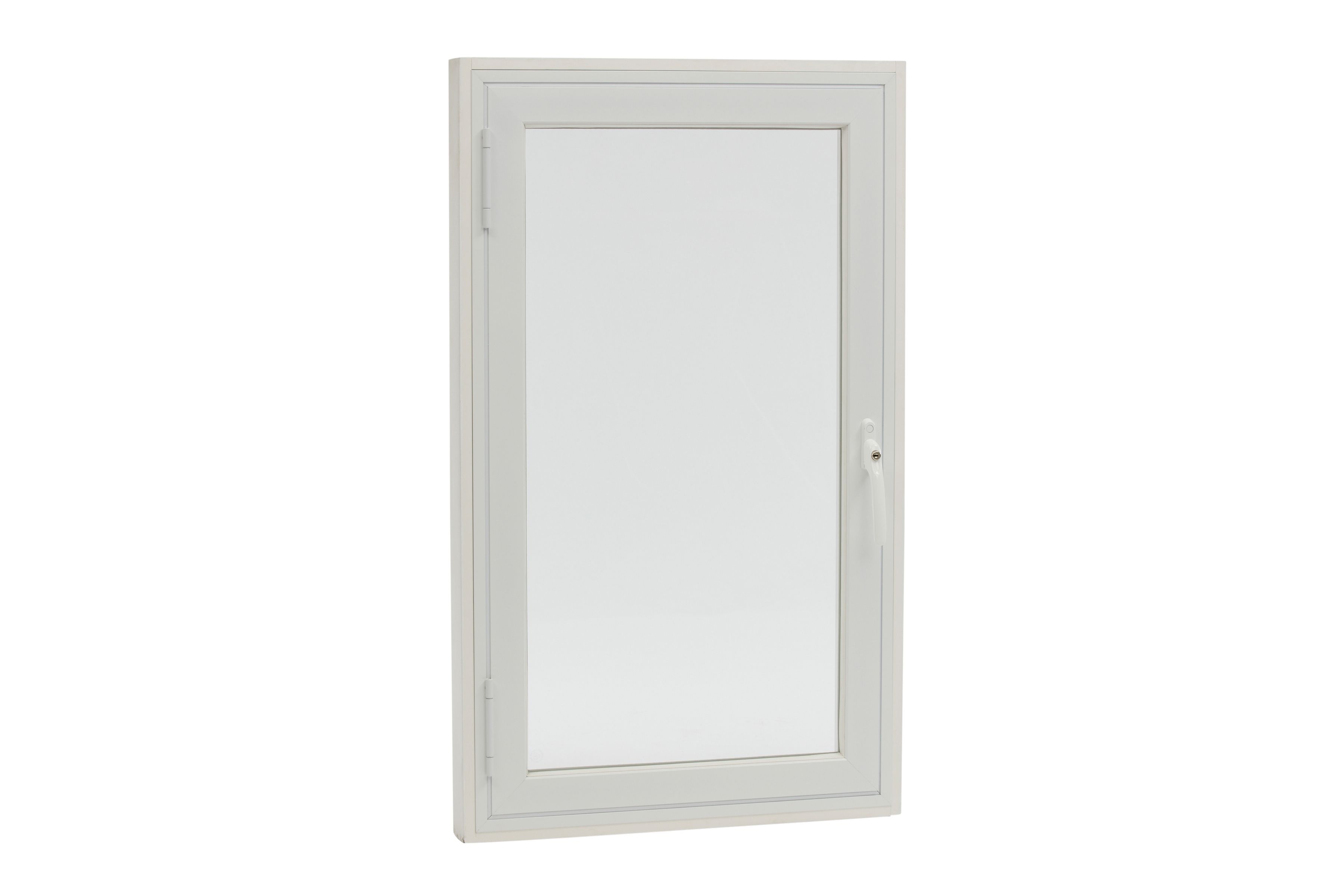

Hinged secondary glazing unit,single panel

This price is for a sample size unit only  (750mm wide x 1000mm high) and does not include delivery costs. As they are made to order to your specific size and specification please use the quote request form to get prices.

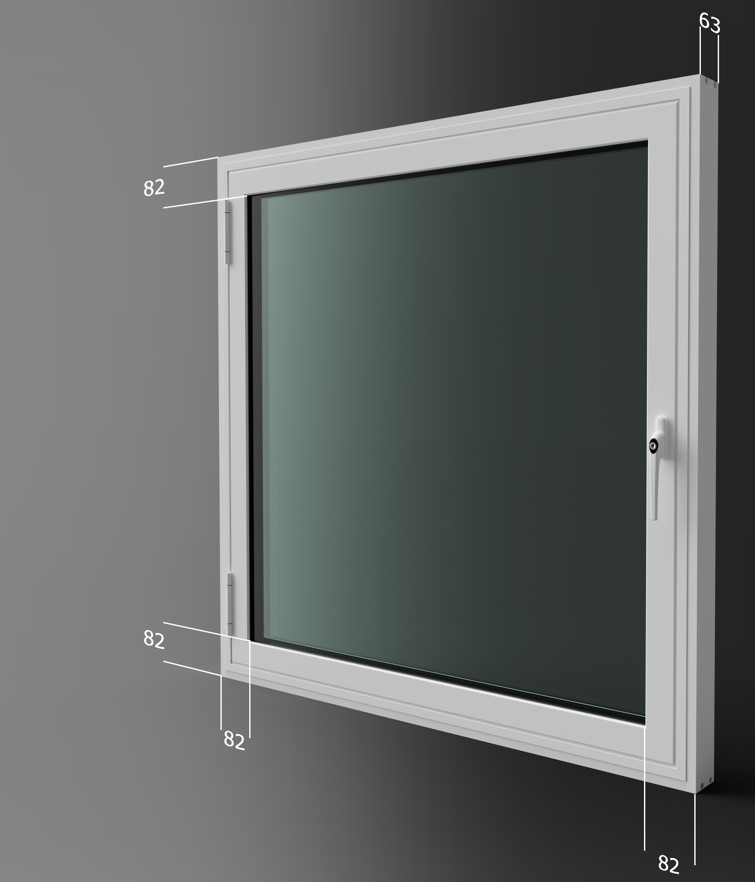

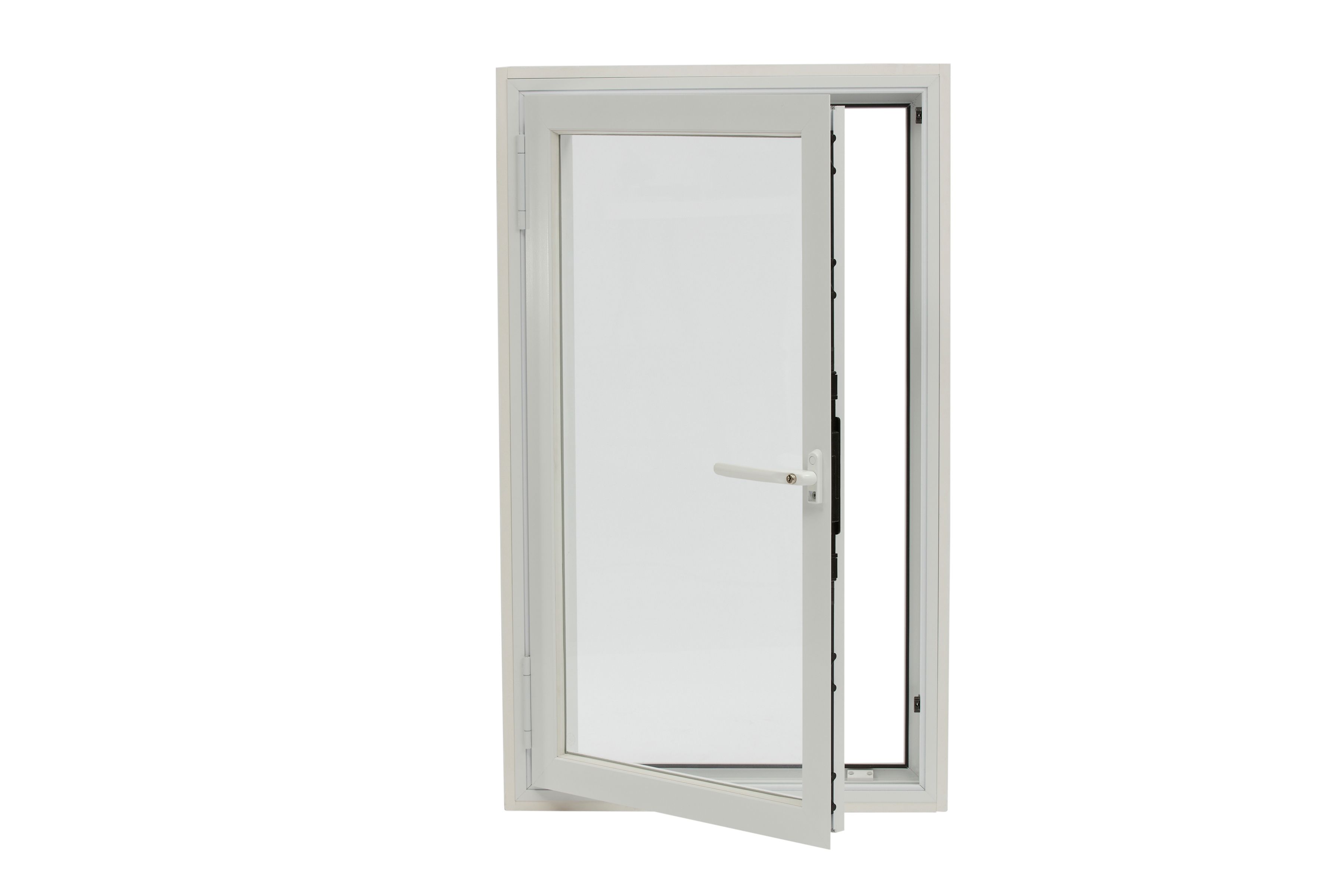

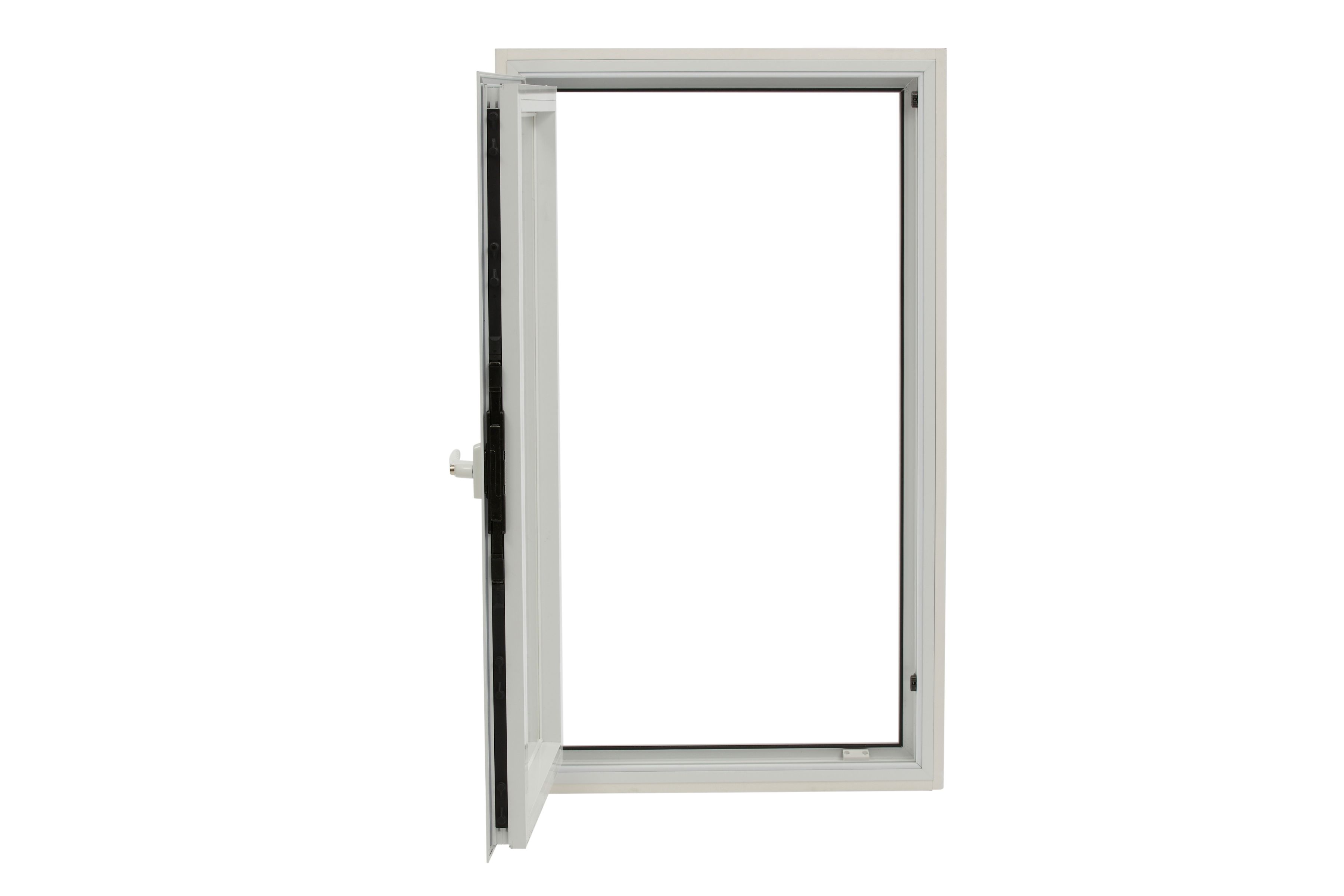

A slim and versatile single panel side hinged unit that provides easy access for cleaning and ventilation. With 60mm sightlines and no transoms or mullions, our hinged units offer an unobstructed view beyond the window. The unit features single handle operation and multi-point locking. Side and base opening also available.

They come as standard with;

4mm toughened glass preglazed

43mm frame depth predrilled for face fix

Panels split evenly unless requested otherwise

White gaskets

20mm white PVC trims supplied

Other glass  types and fixings available

MAX WIDTH 1,400mm MAX HEIGHT 2,400mm

Optimum Noise Reduction: 52dB (Rw) Using 6mm toughened primary glazing and 6.8mm acoustic laminate secondary glazing.

Optimum U Value: 1.868 W/m2K  Using 4mm toughened Low E glazing, with 80mm glass-to-glass
