SmartFix with Unglazed for 4mm Glazing

Estimated Delivery Time : 3 weeks

  • SmartFix with Unglazed for 4mm Glazing
  • Buy SmartFix with Unglazed for 4mm Glazing online today
  • SmartFix with Unglazed for 4mm Glazing from Omega Build
  • Great deals on SmartFix with Unglazed for 4mm Glazing
  • Affordable SmartFix with Unglazed for 4mm Glazing
  • Great selection of SmartFix with Unglazed for 4mm Glazing
£ 0.00 Ex. VAT
£ 0.00 Inc. VAT

Reveal Height
(Max: 1800 mm)
(Min: 300 mm)



Reveal Width
(Max: 1000 mm)
(Min: 300 mm)



Quantity

Download PDF



SmartFix with Unglazed for 4mm Glazing from Omega Build



Product details:


SmartFix is a fixed Secondary Glazing panel framed in aluminium un-glazed for 4mm Glazing.

This product is made-to-measure based on the dimensions supplied.

SmartFix:

(Suitable for) Window Reveal dimensions:

Width:  300mm (minimum),    1,000mm (maximum).

Height: 300mm (minimum),    1,800mm (maximum).

To fit; SmartFix requires 30mm of existing window frame on all (4) sides):

The Frame supplied will be 23mm smaller than size selected to allow room for the toggles

Glazing:

This product is supplied with components cut-to-size, ready to assemble with 4mm glazing panel..

Installation:

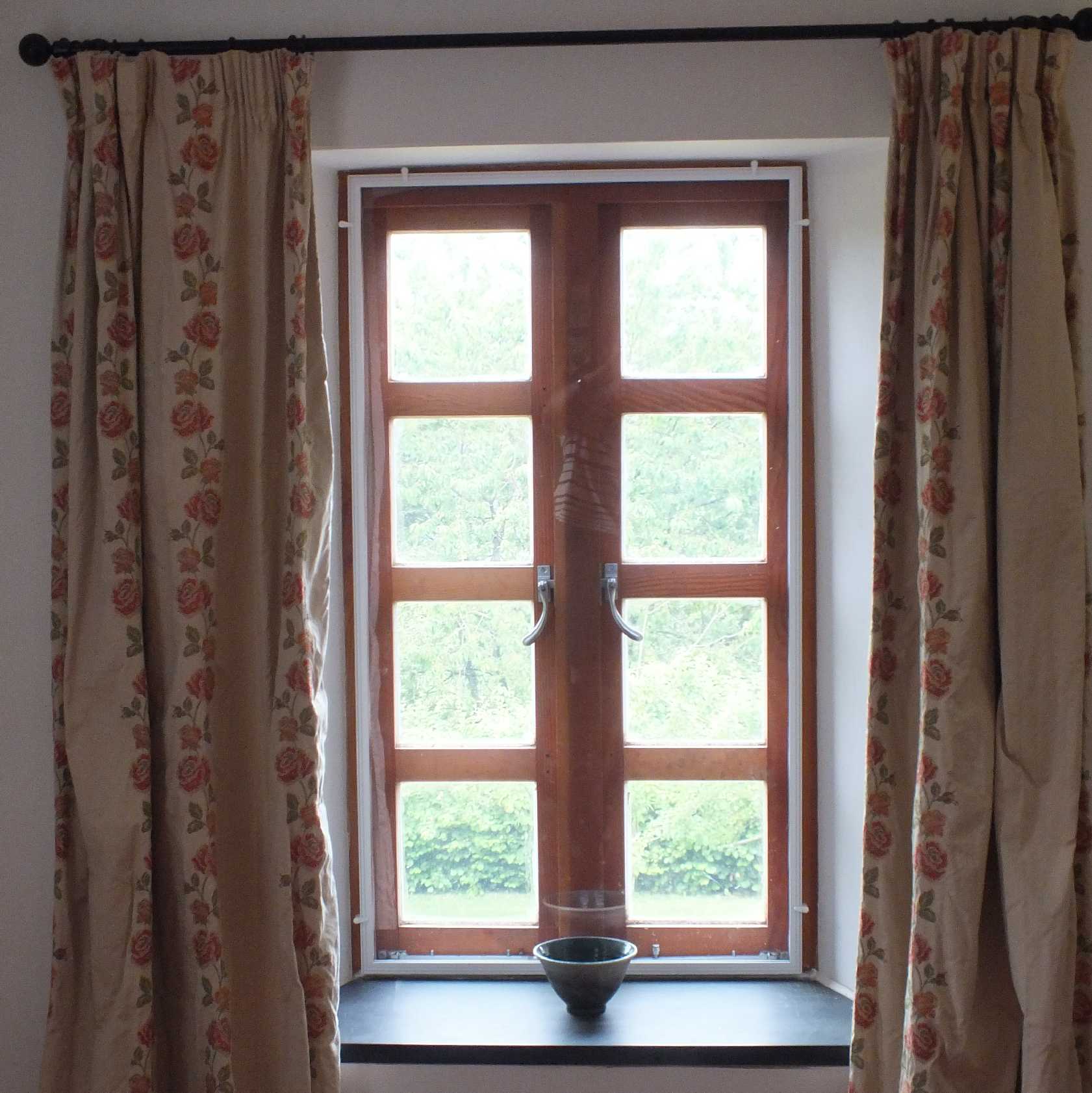

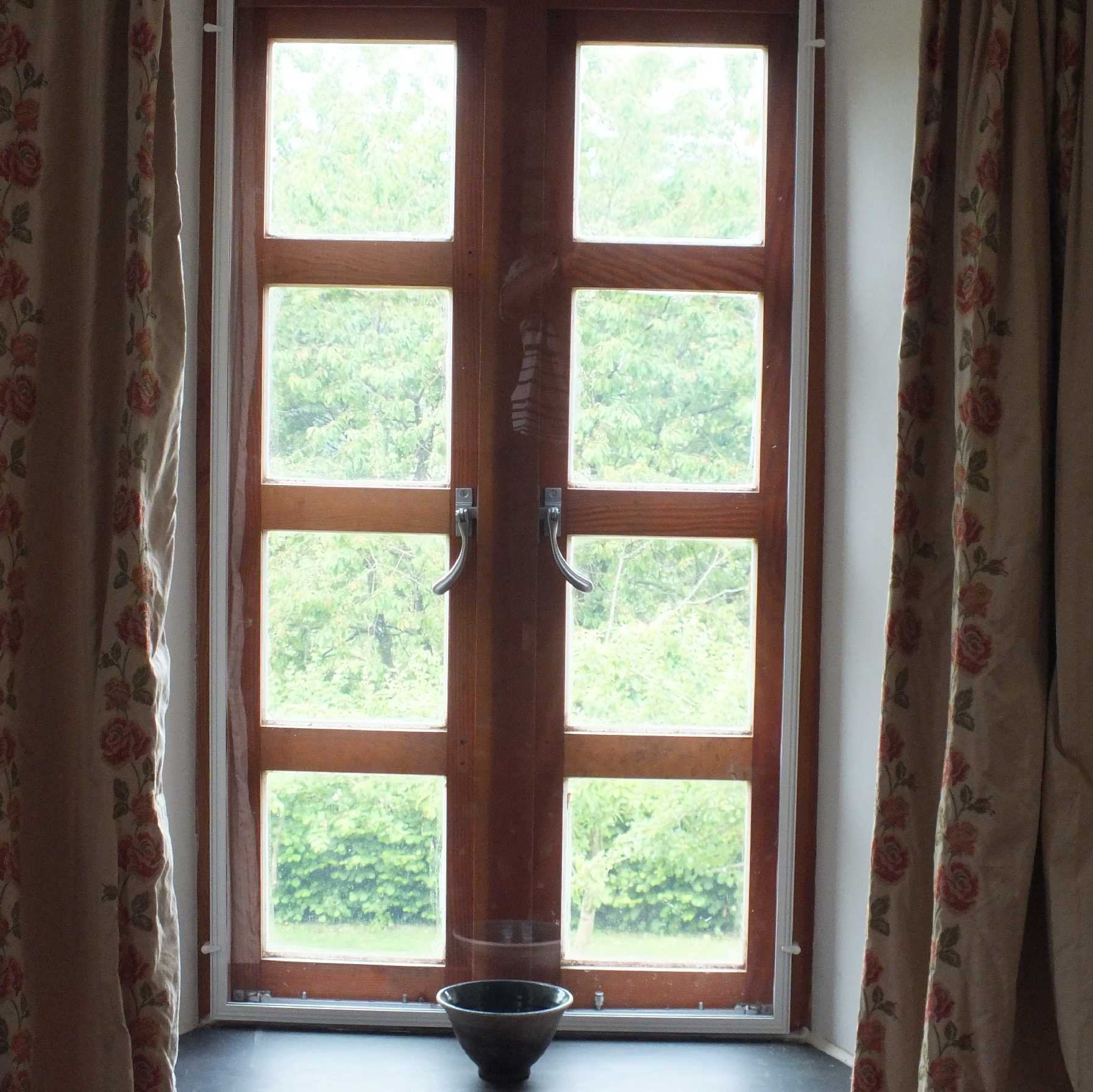

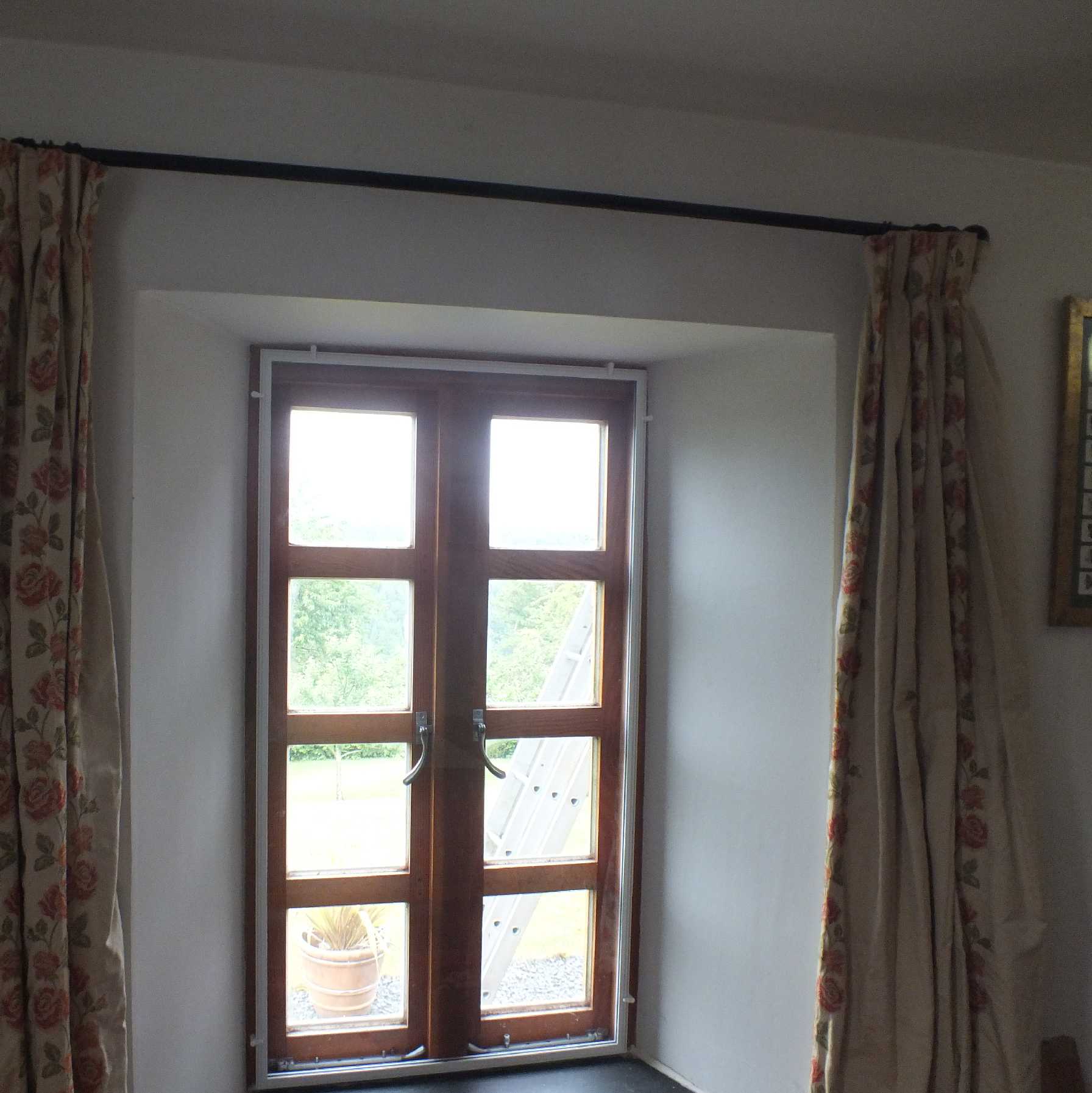

SmartFix is fitted directly to the face of the existing frame (Face Fixed).

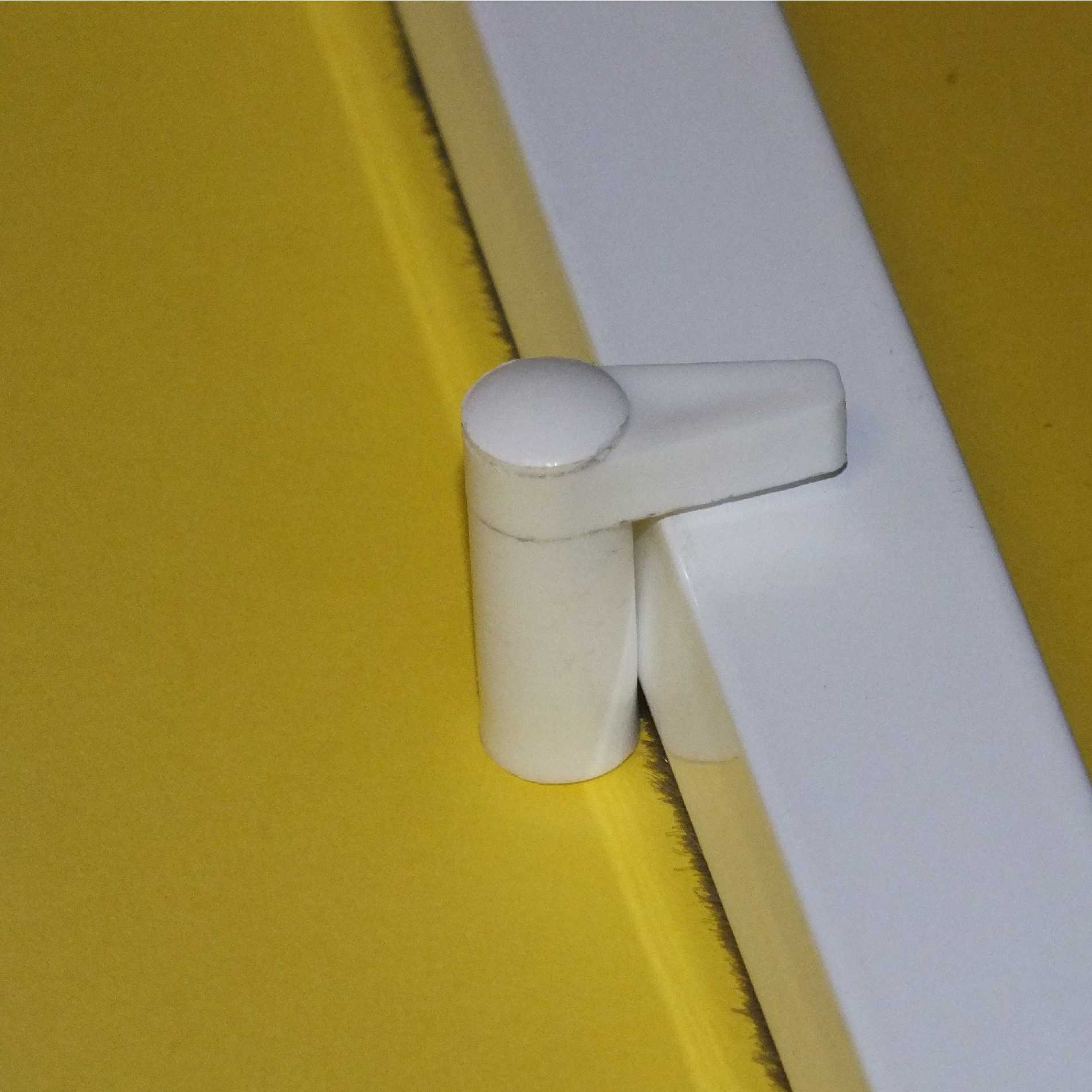

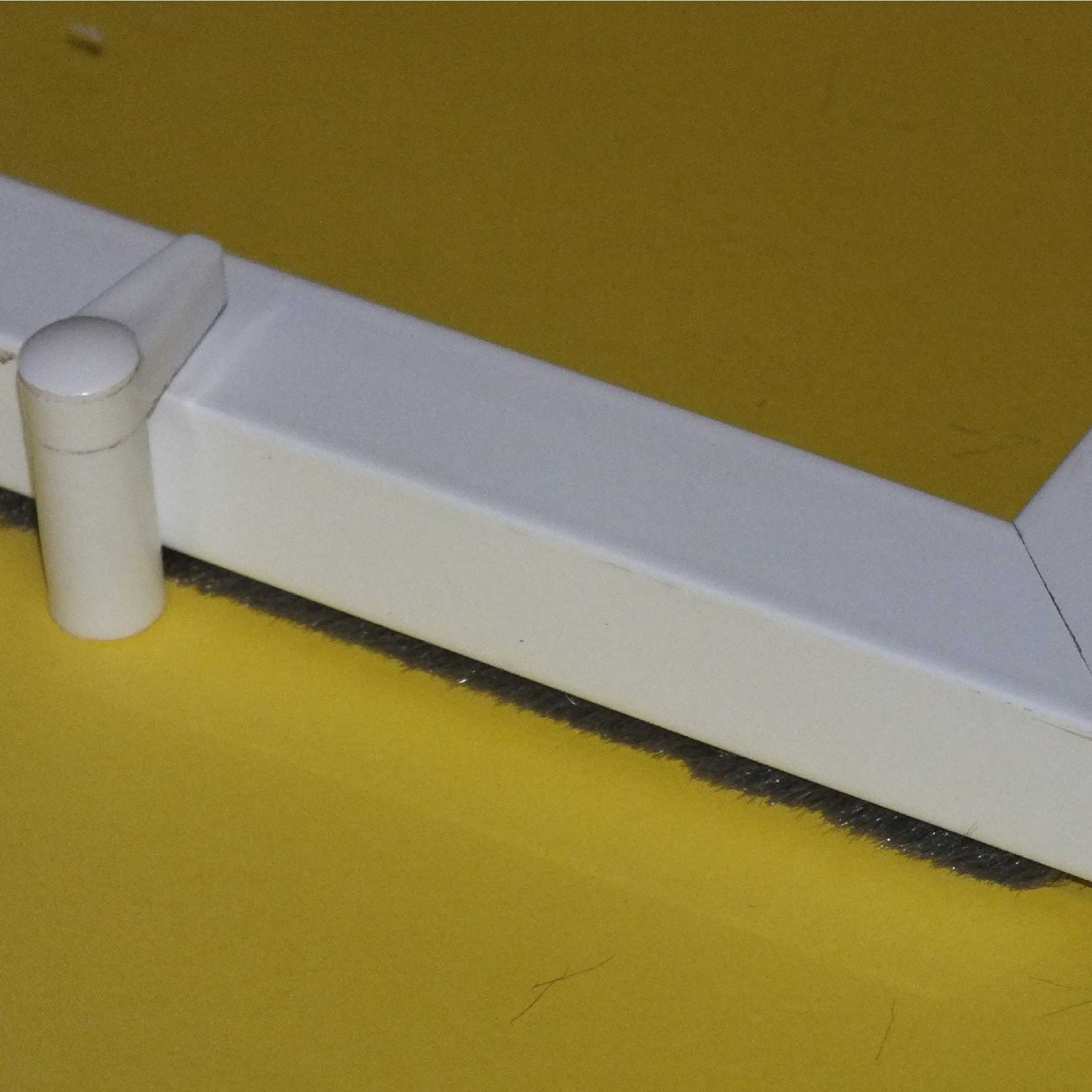

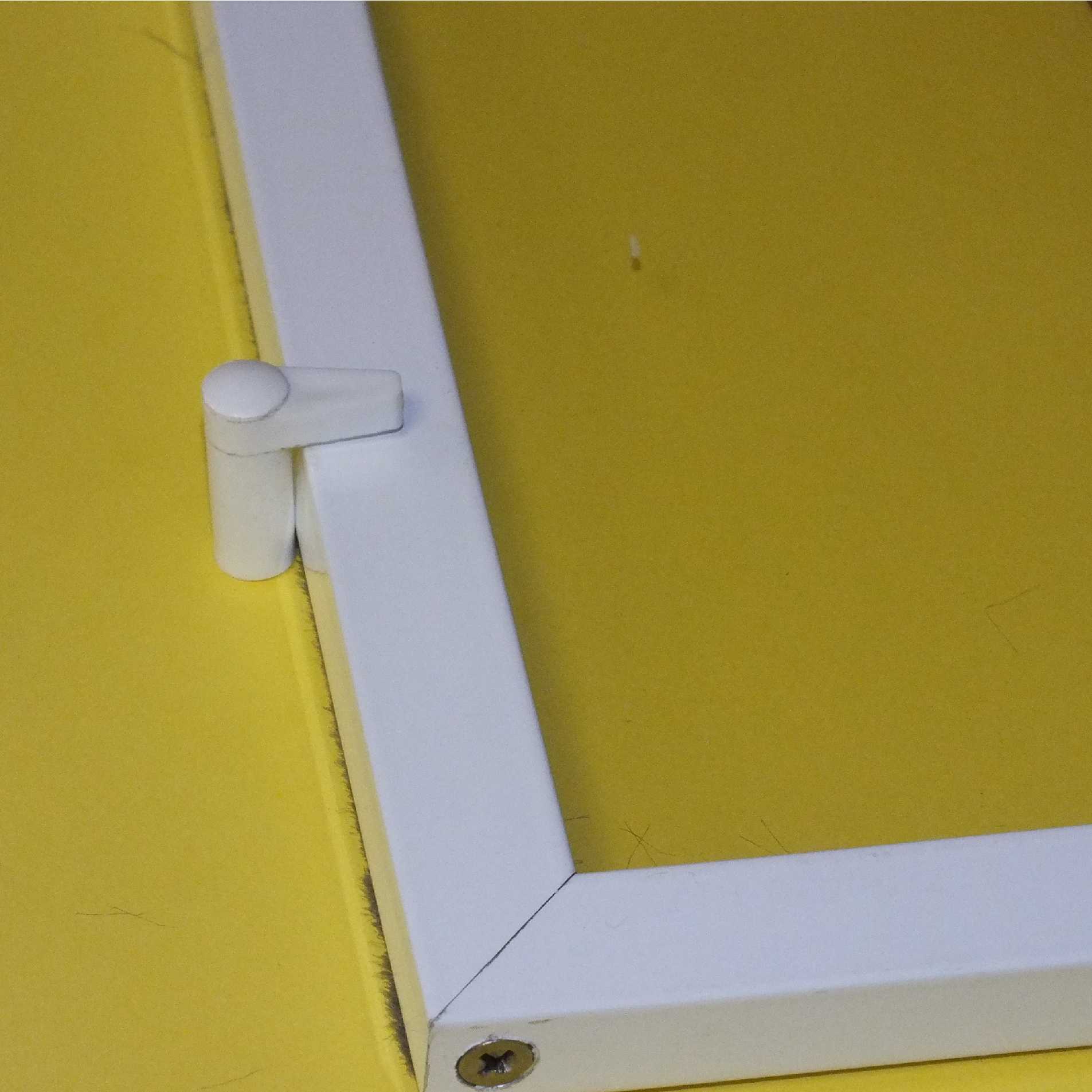

The glazed frame is secured in position using Toggle-Clips around all (4) sides of the glazed frame.
