4 Panel Horizontal Slider, Unglazed for 4mm Glazing from Omega Build



Product details:


SmartSlider - 4 Panel Horizontal Slider (3PHS) Un-Glazed for 4mm Glazing

This product is made-to-measure based on the dimensions supplied.

4 Panel Horizontal Slider (4PHS)

(Suitable for) Window Reveal dimensions:

Width:  1,200mm (minimum), 4,000mm (maximum).

Height:    300mm (minimum), 1,800mm (maximum).

Operation:

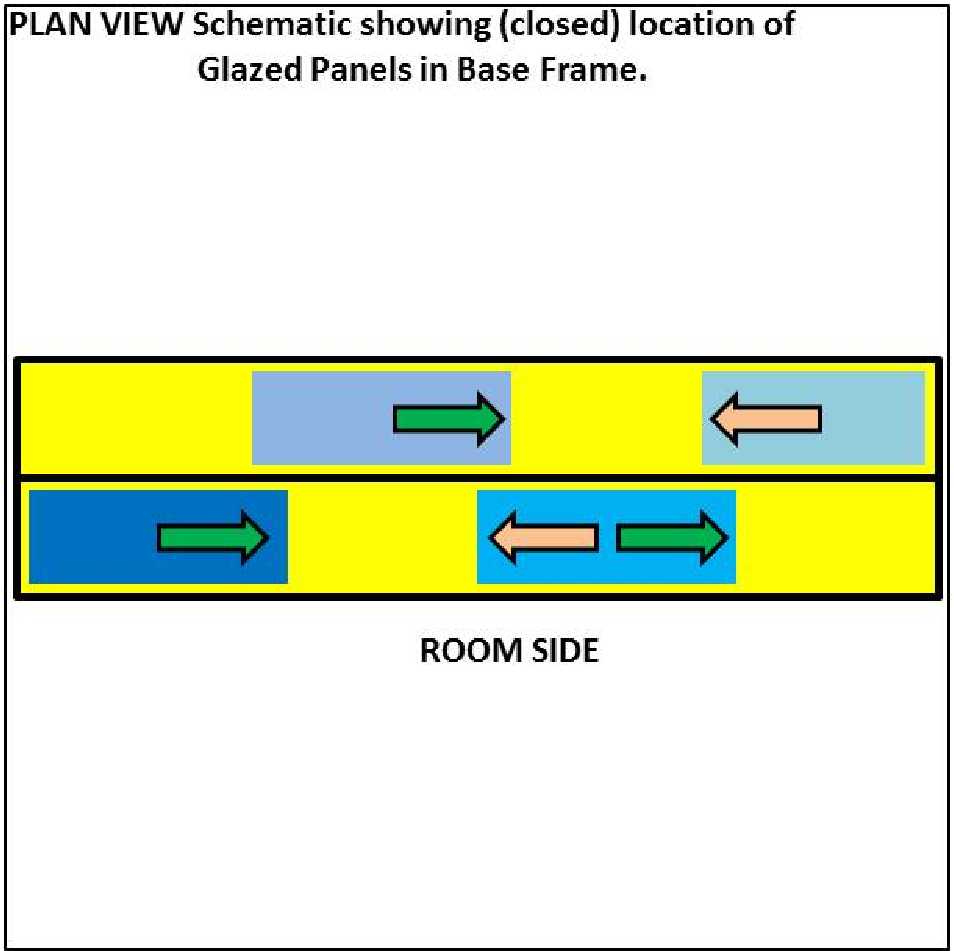

The sliding panels slide in the base frame. The base frame has (2) channels.

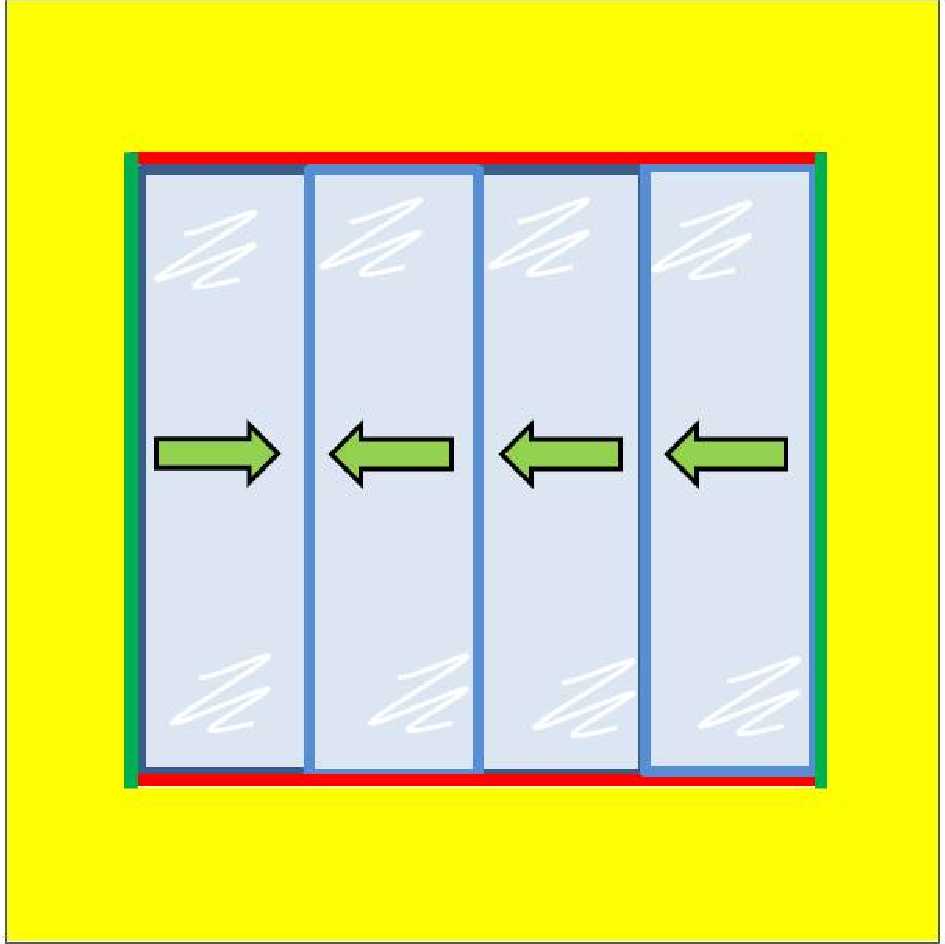

In describing the channels in which the panels slide; the panels are numbered 1-4, with 1 being left-hand side panel and 4 being the right-hand side panel (viewed from inside the room).

Panel 1 slides in the channel furthest from the existing window.

Panel 2 slides in the channel nearest the existing window.

Panel 3 slides in the channel furthest from the existing window.

Panel 4 slides in the channel nearest the existing window.

The four panels hook together when closed to provide a draught-proof seal.

Glazing:

This product is supplied with components cut-to-size, ready to assemble with 4mm glazing supplied by the customer .

Installation:

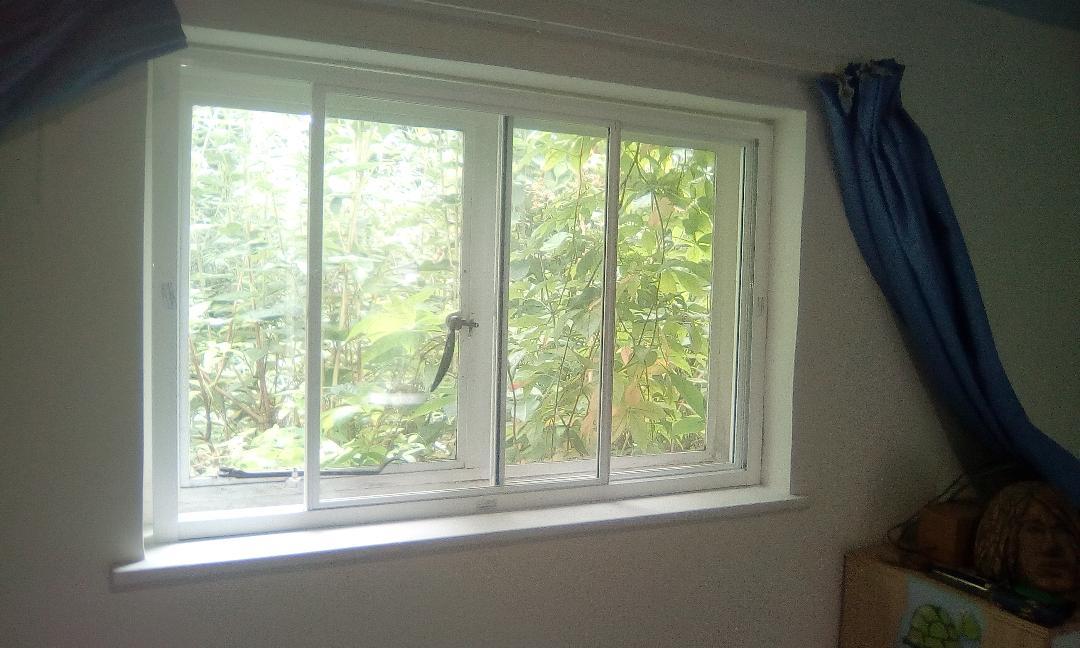

SmartSlider can be fitted directly to the face of the existing frame (Face Fixed), or

SmartSlider can be fitted to the window reveal (Reveal Fixed).
