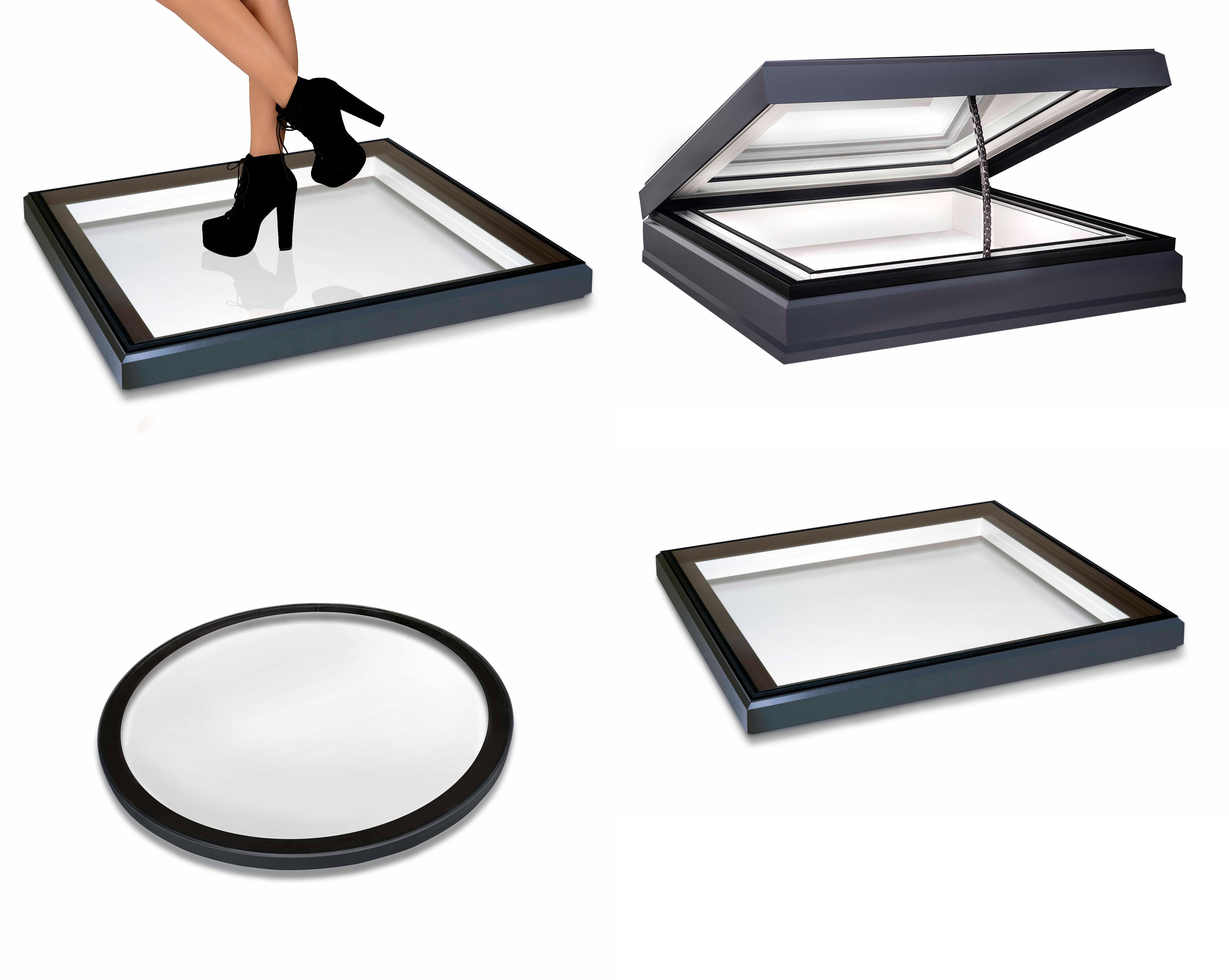

Glass Flat Roof Lights • Ecogard Flat Glass roof light
This is a glazed flat roof light. It must be installed on a 5-degree pitched Upstand.
The 5-degree pitched upstand can be constructed (by you) on site or supplied pre-fabricated and insulated by Omega.
Standard Finishes: External - Grey RAL 7015 Matt. Internal - White RAL 9010 Matt.
Standard Sizes: 1,000mm x 1,000mm. 1,000mm x 1,500mm. 1,000mm x 2,000mm.
(These dimensions refer to the outside of the curb of the upstand).
Glazing:
Standard Glazing: 28mm Double Glazed Unit, toughened softcoat Low E safety glass, warm edge spacer, argon filled.
Glazing Options: Double Glazed, Triple Glazed, Solar Control Bronze, Grey or Blue tinted glass, Low-maintenance coating, Privacy Glass.
Glazed units: Toughened glass, warm-edge spacers, argon-filled.
(Glazing options are NOT completely mixable. The options that can be specified together are shown when choosing Product options).
U-Value: 1.2W/m2.K.(Standard double-glazed unit).
Opening: The EcoGard Rooflight can be supplied as Opening or Fixed for 1,000mm x 1,000mm and 1,000mm x 1,500mm.
It is supplied as Fixed only for 1,000mm x 2,000mm.
Installation: EcoGard is quick and simple to install. Installation instructions are supplied with each Ecoguard rooflight.
(For non-standard sizes and Prefabricated and Insulated Curbs please contact Omega)
Ecoguard is guaranteed for 10 years. |
