Made To Measure Secondary Glazing • SmartFrame

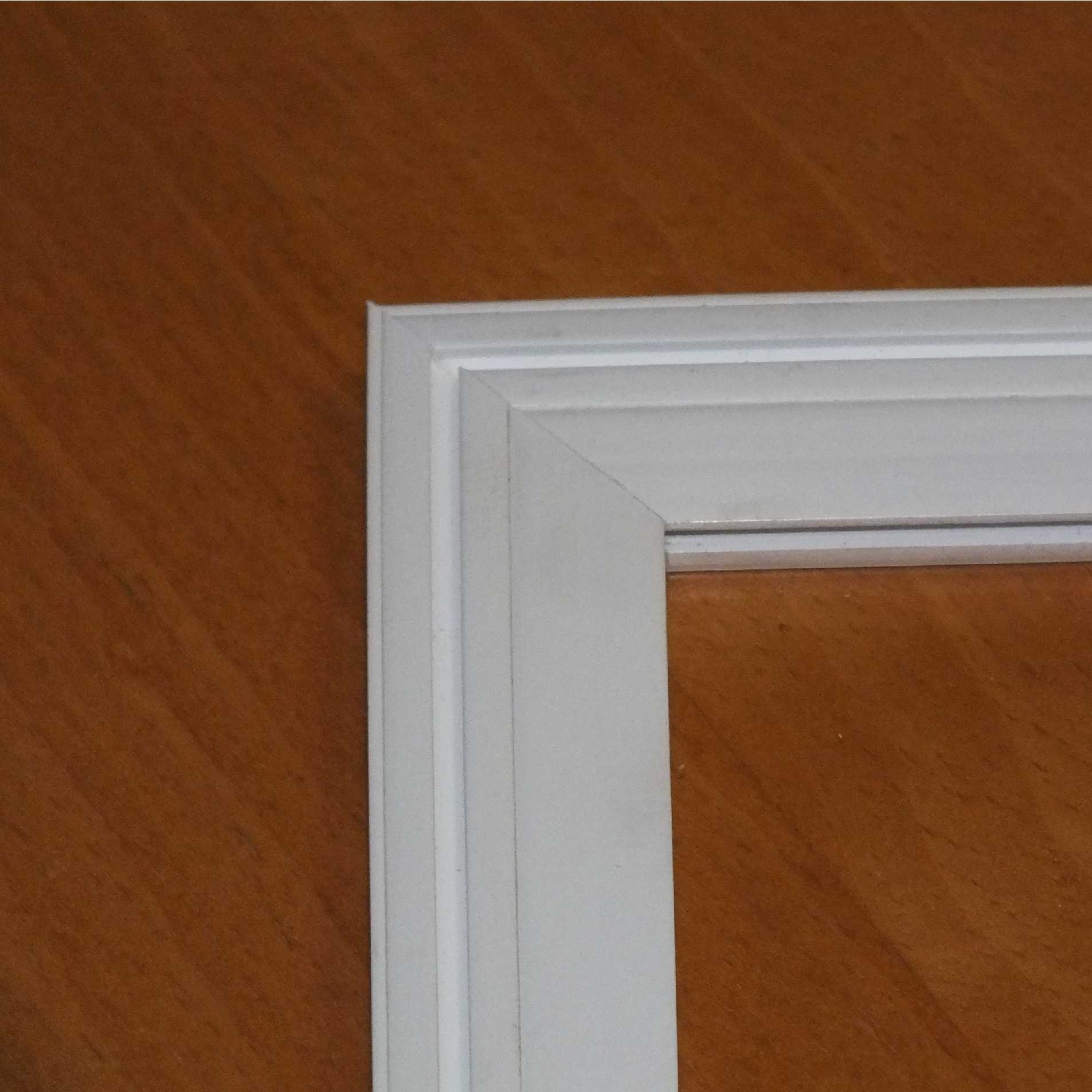

SmartFrame is a fixed Secondary Glazing panel framed in uPVC. This product is made-to-measure based on the dimensions supplied.









SmartFrame:

(Suitable for) Window Reveal dimensions:

For 2mm Acrylic and 2mm Plate Polycarbonate:

Width:  300mm (minimum),    1,000mm (maximum).

Height: 300mm (minimum),    1,000mm (maximum).

For 4mm Acrylic and 4mm Plate Polycarbonate:

Width:  300mm (minimum),    1,000mm (maximum).

Height: 300mm (minimum),    2,000mm (maximum).

For 4mm Glass:

Width:  300mm (minimum),    1,000mm (maximum).

Height: 300mm (minimum),    1,500mm (maximum).

Glazing:

2mm Acrylic.

4mm Acrylic.

2mm Plate Polycarbonate.

4mm Plate Polycarbonate.

Un-glazed for 4mm glass.

Plate Polycarbonate is glass clear and shatterproof and is more expensive that Acrylic.

If supplied unglazed, the glass panel size will be supplied.

The frame is white uPVC.

Installation:

SmartFrame is fitted directly to the face of the existing frame (Face Fixed).

The glazed frame is secured in position using No.8x16mm Stainless Steel screws. These are screwed through the uPVC base frame into the existing window frame. The uPVC finisher covers the screw heads.


Benefits of Secondary Glazing:

Secondary Glazing is installed in order to achieve one of two objectives:

Heat loss reduction.

Noise reduction.

Heat Loss reduction is best achieved by installing the secondary glazing as close as possible to the existing (window) glazing. The optimal dimension is 15-20mm.

The glazing material would be 4mm thick.

This mainly implies that the secondary glazing frame is Face-Fixed to the existing window frame.

Noise reduction is best achieved by installing the secondary glazing between 150mm and 200mm from the existing (window) glazing.

Use a different thickness glazing material from that employed in the existing window glazing. This often implies using 6mm thick glazing material as most common window glazing (both single-glazed and double-glazed) is 4mm thick.

The secondary glazing would be Reveal-Fixed into the window reveal.

A balance of these two objectives can be achieved.

Specific situations and objectives should be discussed with Omega before placing your order to ensure the best solution is provided.




SmartFrame with 2mm Acrylic Glazing
SmartFrame with 2mm Acrylic Glazing

Our Price         : £ 0.00 Ex. VAT


Price With Vat : £ 0.00 Inc. VAT

SmartFrame with 2mm Plate Polycarbonate Glazing
SmartFrame with 2mm Plate Polycarbonate Glazing

Our Price         : £ 0.00 Ex. VAT


Price With Vat : £ 0.00 Inc. VAT

SmartFrame with 4mm Acrylic Glazing
SmartFrame with 4mm Acrylic Glazing

Our Price         : £ 0.00 Ex. VAT


Price With Vat : £ 0.00 Inc. VAT

SmartFrame with 4mm Plate Polycarbonate Glazing
SmartFrame with 4mm Plate Polycarbonate Glazing

Our Price         : £ 0.00 Ex. VAT


Price With Vat : £ 0.00 Inc. VAT
