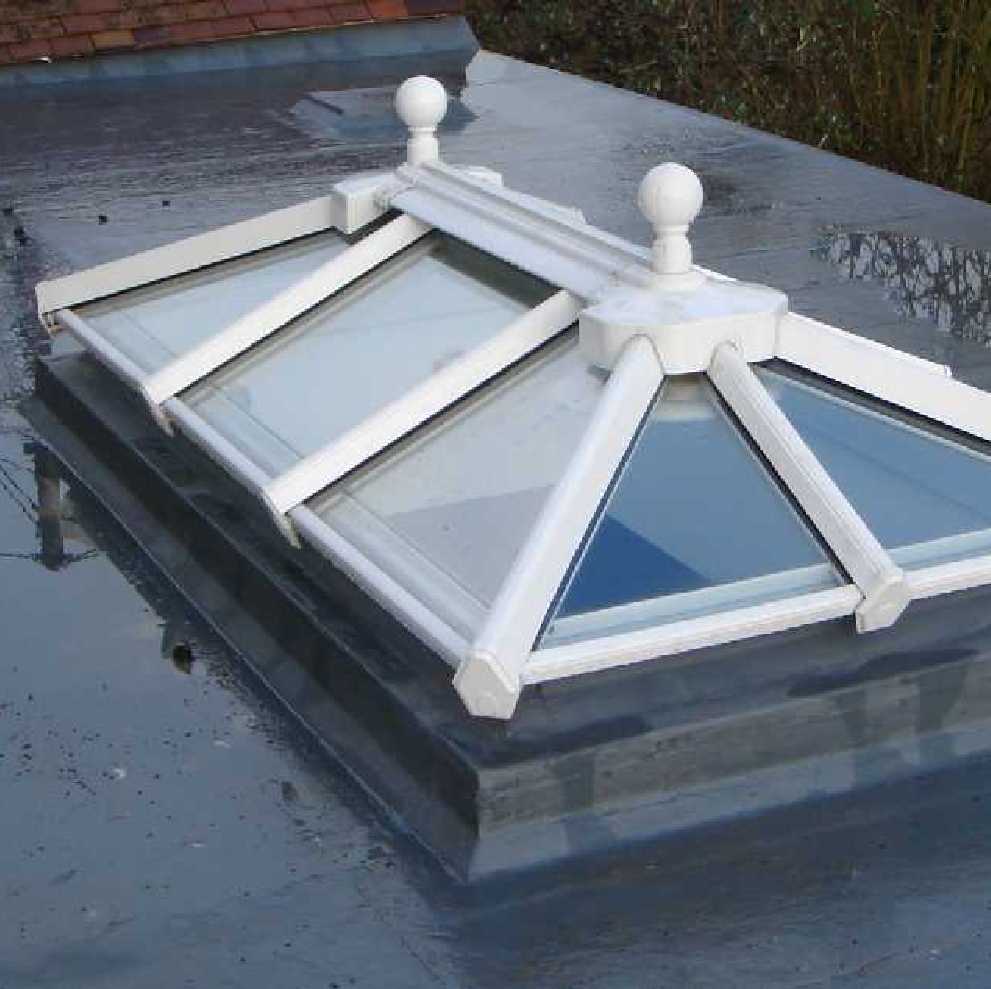

UPVC Roof Lantern • Roof Lantern, Clear Glass

UPVC Roof Lantern, Clear Glass

Roof Lantern, Clear Glass Product Details

The aluminium glazing bars are fitted with:
External Top Cap: uPVC, White.
Internal Under-cladding: uPVC, White.

The aluminium Eaves Beam (that is fixed to the upstand) runs around all (4) sides of the Lantern. It is clad internally in uPVC, White.

Externally, the Eaves Beam is NOT fitted with guttering and is NOT supplied with any finishing. This allows the installer to bring the roofing material up the outside of the Upstand and continue up over the external face of the Eaves Beam to completely weather seal the Eaves Beam/Upstand joint.

This Lantern is supplied with Clear 24mm Toughened Glass Double Glazed Units:

(i) Argon Filled: YES.
(ii) Low 'E' Coating: NO.
(iii) Self-Cleaning: NO.
(iv) U Value: 2.7W/Sqm.K.
(v) Solar Heat Reflected: 24%.
(vi) Light Transmitted: 81%.

The Lantern Ridge can be supplied as a plain ridge with Ball Finials or Ornate Crestings and Finials.

Roof Lanterns are made-to-measure:

The Lantern will be made to the dimensions that you require.

(2) Dimensions are required: Both of these dimensions are the INTERNAL dimensions of your Upstand. The Lantern will be fixed to your Upstand.

The length dimension (mm) is the internal dimension of your Upstand (running) parallel to the Lantern Ridge.

The width dimension (mm) is the internal dimension of your Upstand that runs at 'Right-Angles' to your Lantern Ridge.

A Lantern with the dimensions 1,450mm (W) x 2,100mm (L) will be priced at the next standard size Lantern which is 1,500mm (W) x 2,250mm (L).

Other Options:

Glazing Bar Top Caps can be supplied in: Mahogany, Rosewood, Golden Oak, Black, Dark Grey, Cream, Chartwell Green, Rustic Cherry, Woodgrain-White.
The coloured Top Caps are all foiled aluminium Top Caps with White uPVC Under-cladding. These colours attract additional cost and can be subject to longer lead-times.

Please call the office on 01769 574426 to discuss these options and any dimensions not listed.

Return to the UPVC Roof Lanterns category home page.



Roof Lantern, uPVC, White, Clear Glass
Roof Lantern, uPVC, White, Clear Glass

Our Price         : £ 512.83 Ex. VAT

Price With Vat : £ 615.40 Inc. VAT
