3 Panel Horizontal Slider with 6mm Plate Polycarbonate Glazing from Omega Build



Product details:


SmartSlider - 3 Panel Horizontal Slider (3PHS) with 4mm Plate Polycarbonate Glazing in a white aluminium frame.

This product is made-to-measure based on the dimensions supplied.

3 Panel Horizontal Slider (3PHS)

(Suitable for) Window Reveal dimensions:

Width:     900mm (minimum), 3,000mm (maximum).

Height:    300mm (minimum), 1,800mm (maximum).

Operation:

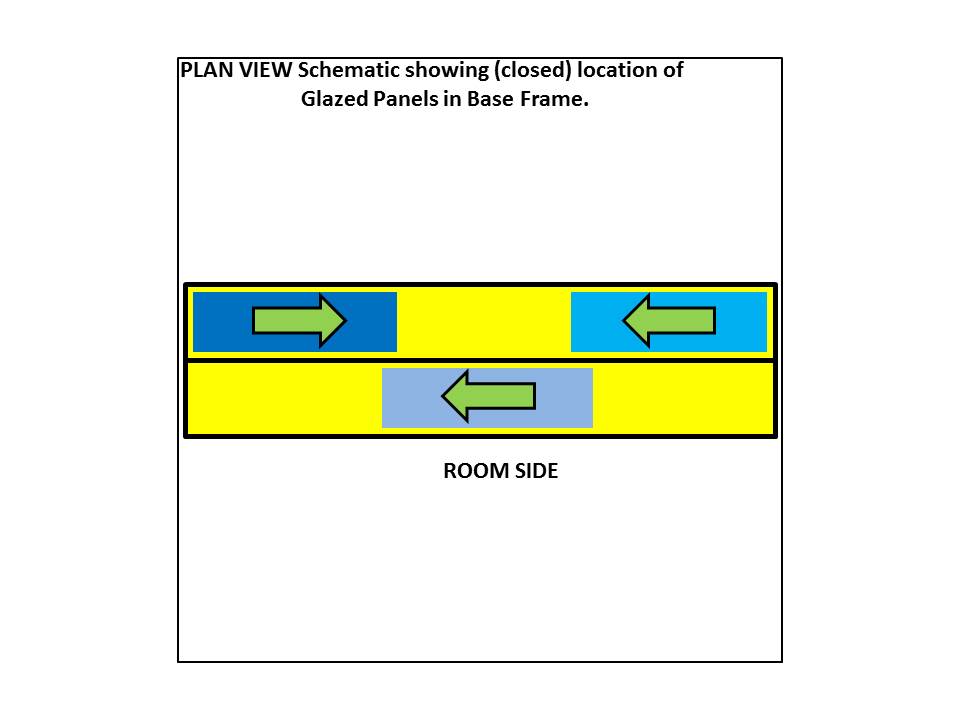

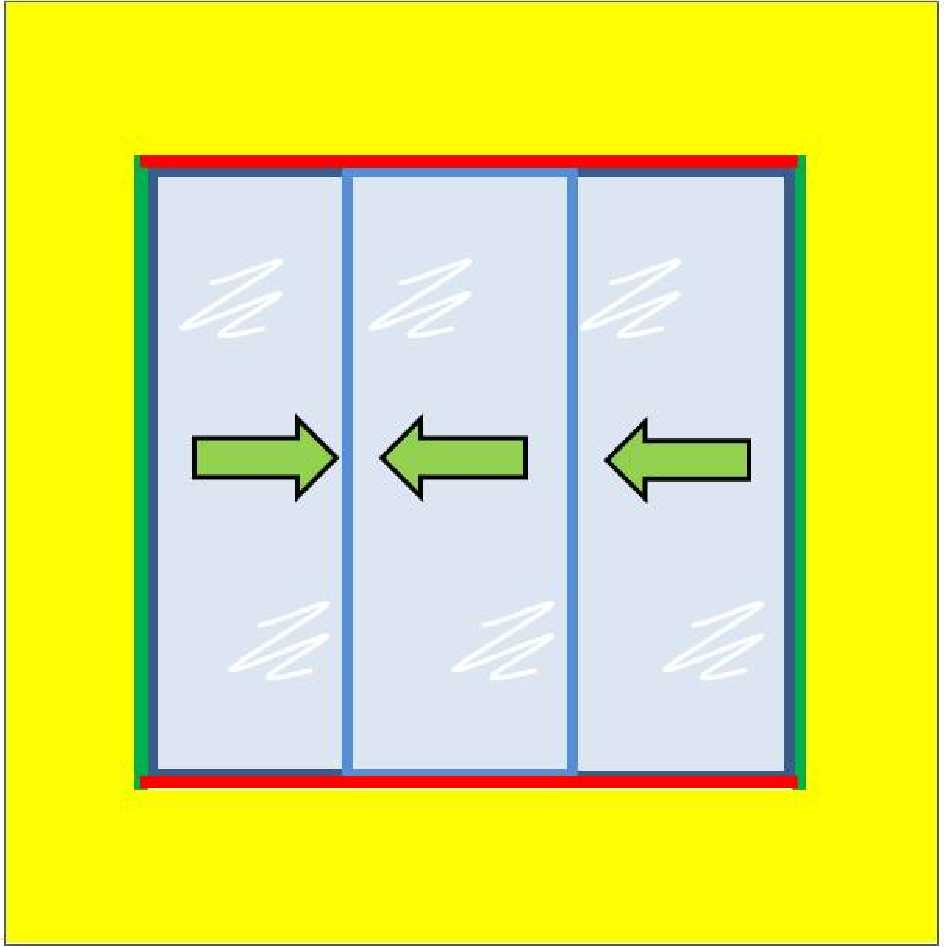

The sliding panels slide in the base frame. The base frame has (2) channels.

The Left-Hand panel slides in the channel closest to the existing window (when viewed from inside the room).

The Middle panel slides in the channel furthest from the existing window (when viewed from inside the room).It will move with the right-hand panel.

The Right-Hand panel slides in the channel closest to the existing window (when viewed from inside the room).

The three panels hook together when closed to provide a draught-proof seal.

Glazing:

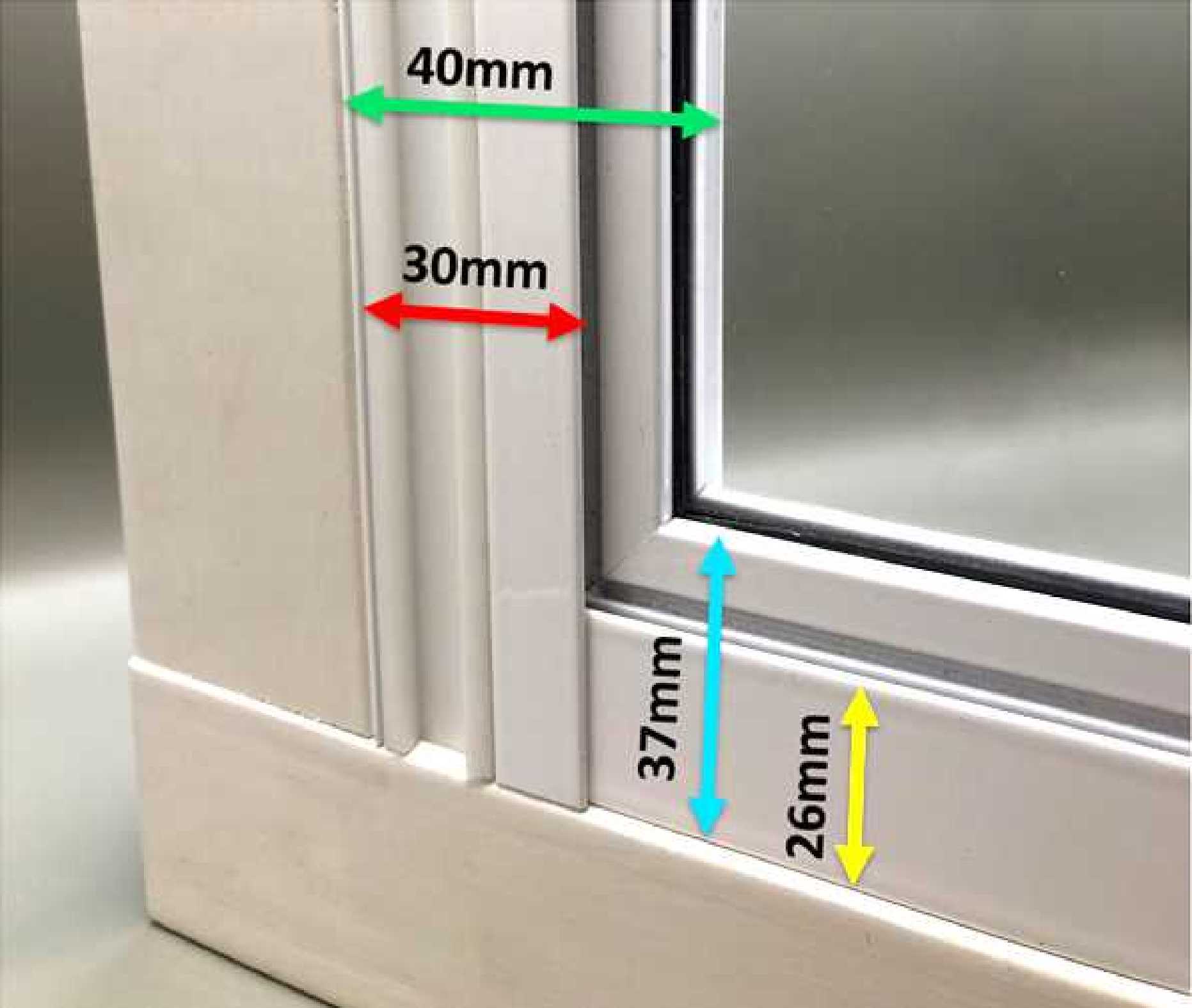

6mm Plate Polycarbonate Glazing Panel in a white aluminium frame.

Installation:

SmartSlider can be fitted directly to the face of the existing frame (Face Fixed), or

Smartslider can be fitted to the window reveal (Reveal Fixed).
